Product Design Solutions

A design institute's building earthquake-resistant project:
The project design requirements are as follows:
Solution:

Select the disc spring according to the customer's technical requirements, design the overall structure of the device according to the disc spring size, and then conduct simulation analysis.
The intensity check is performed by collecting the mechanical properties data of the material and comparing it with the simulation data.

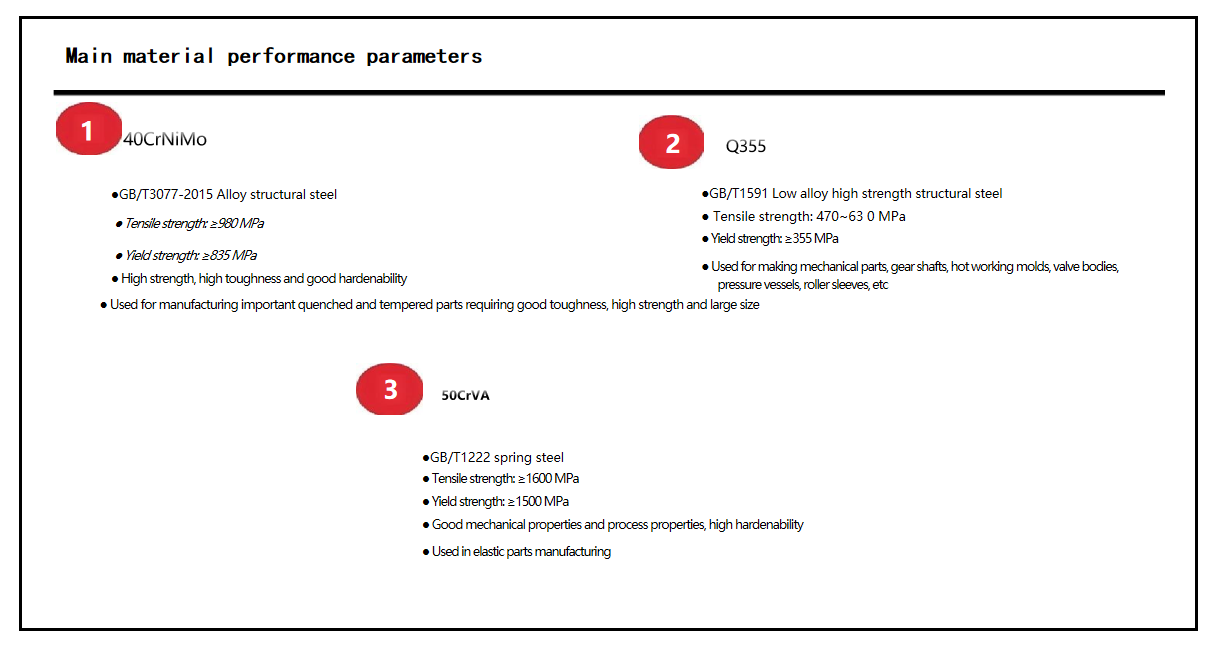

Main material performance parameters

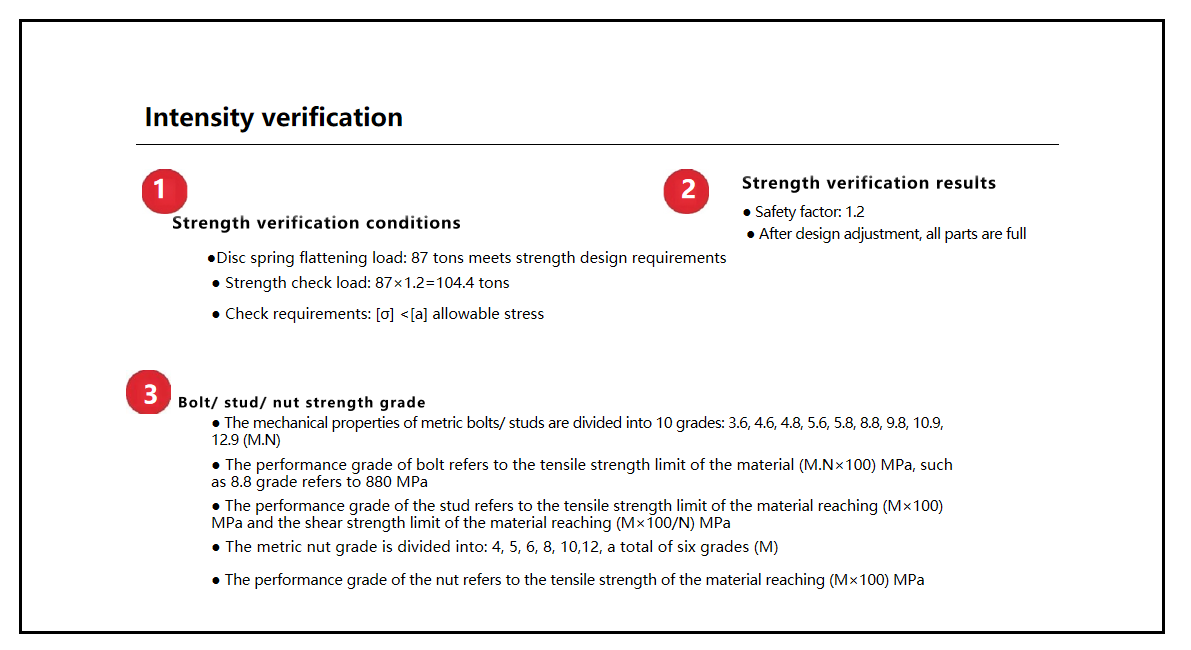

Strength verification

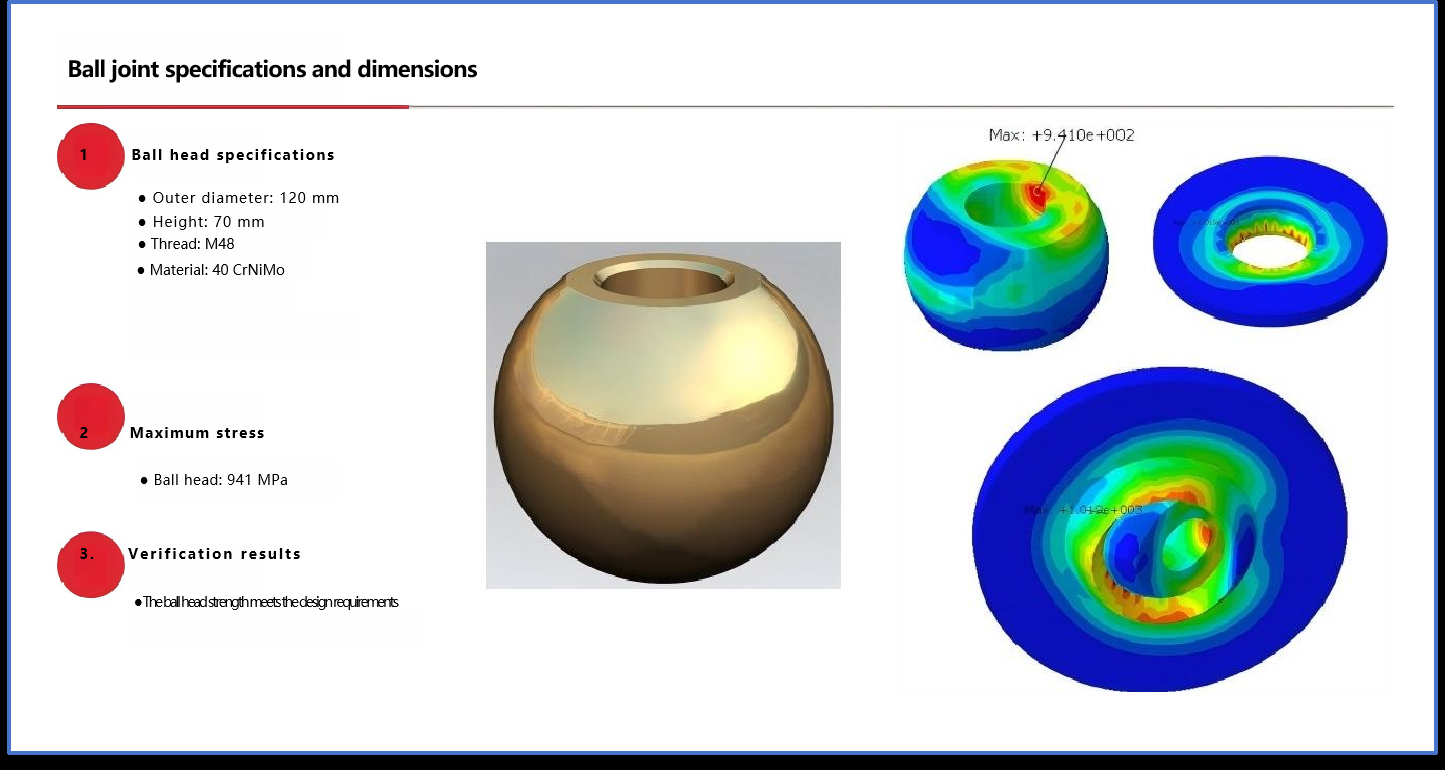

Ball head specifications and dimensions

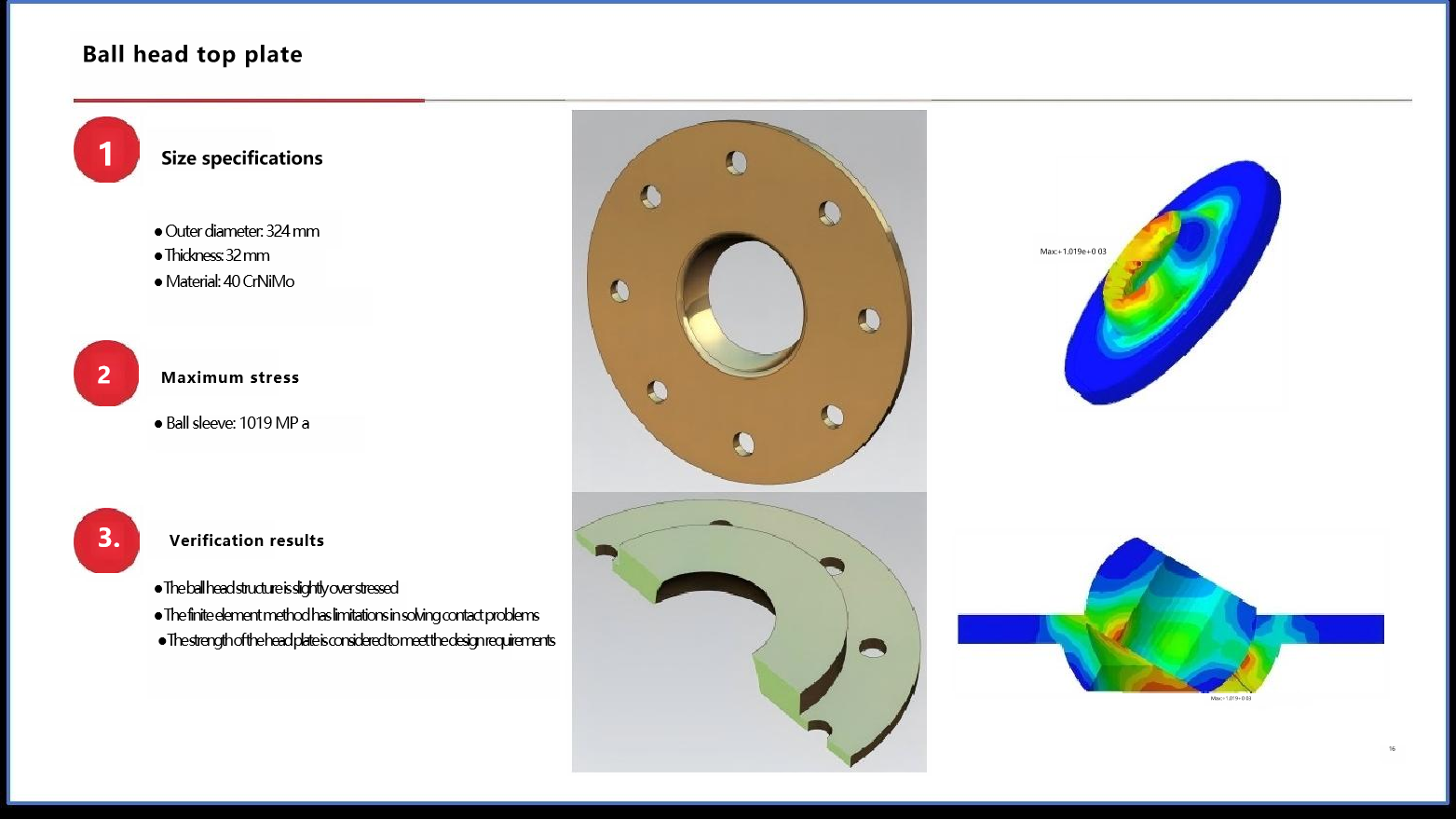

Spherical head upper sealing plate

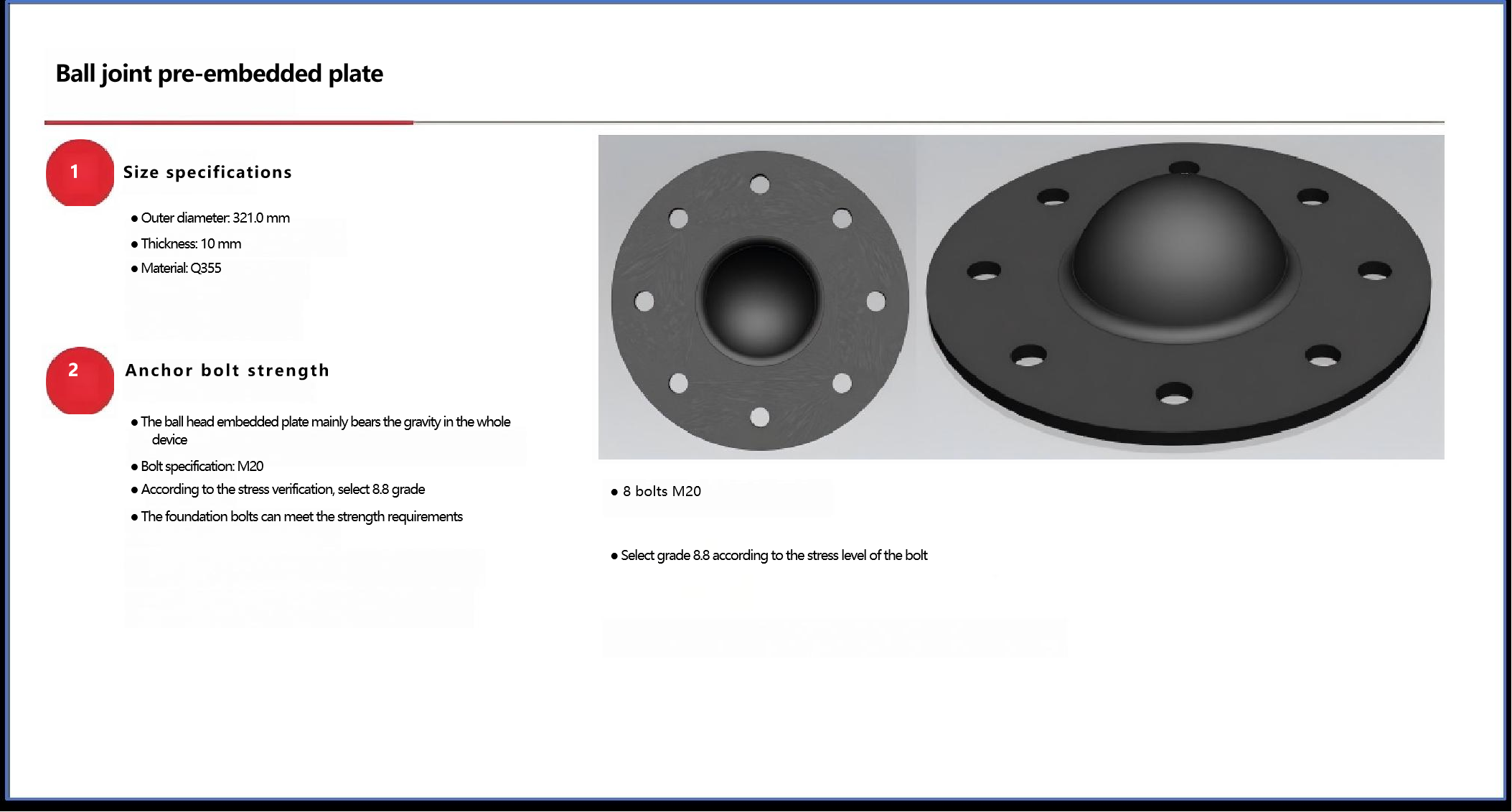

Ball head embedded plate
Sleeve

The core advantage of project verification through simulation is that it can use a combination of virtual and real methods to optimize the entire process control and significantly improve the reliability, efficiency and economics of the project.

SUNZO has it’s own researching and development team and test center, has participate in rule-making of the latest national industry standards and the international ISO standards for disc springs.
