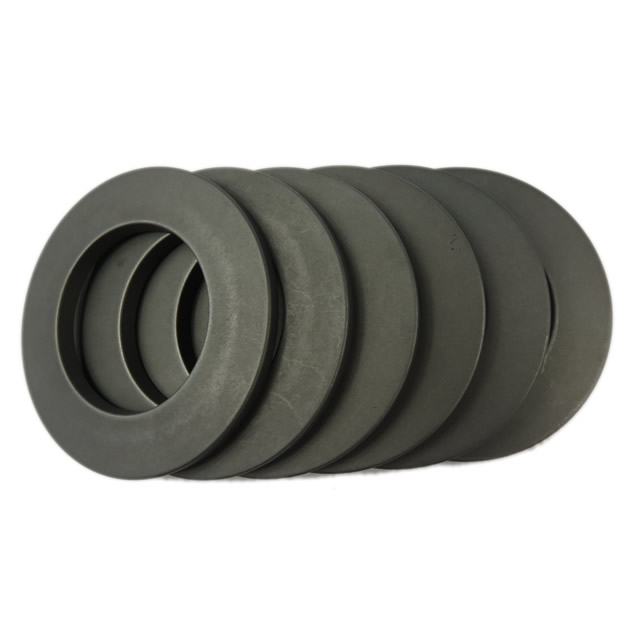

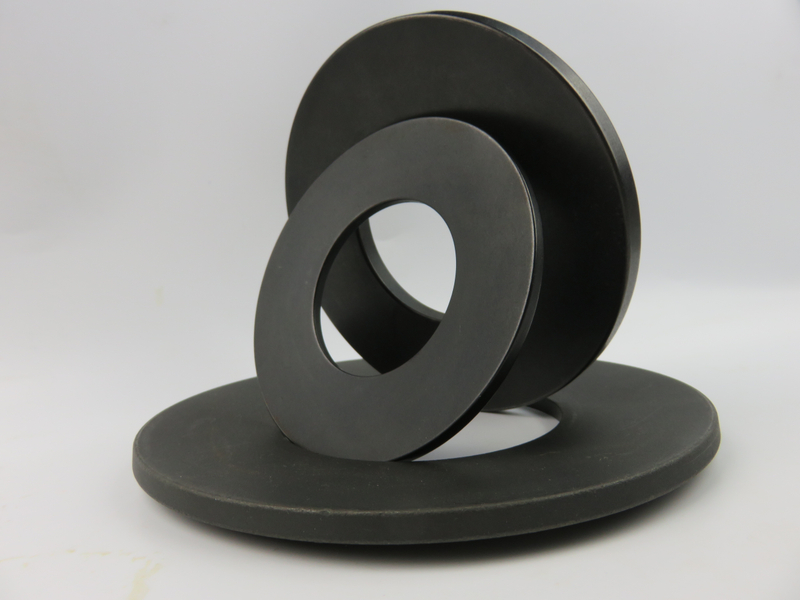

SUNZO SPRING - YOUR YOUR RELIABLE DISC SPRING MANUFACTURER
Disc springs are annular coned elements that offer resistance to a compressive load applied axially. They may be designed as single disc springs or as disc springs stacked in parallel or in series, either singly or in multiples. They may be subjected to both static and fatigue loading, and may have flat bearings.
Sunzo Spring provide DIN2093 Metric Disc Washer Series to meet all kinds of applications, and also expand on size options base on DIN 2093 table, made to DIN manufacturing and quality specifications to provide component flexibility for product designers. Sunzo DIN2093 Disc Washers could be made according to your requirements.
Disc spring groups
| Group | t | With flat bearings and reduced thickness |
| 1 | ＜ 1.25 | No |
| 2 | 1.25 ≤ t ≤6 | No |
| 3 | 6 ＜ t ≤ 14 | Yes |
Characteristics
Own high stiffness and great buffer and shock absorption capacity; be able to undertake huge loads by small deformation and is suitable for the occasions where the axial space is relatively small
This type of spring is featured by variable stiffness and broad non-linearity.
Different combination methods of the same disc springs can lead to different spring characteristics. The combination methods combing the springs with different thicknesses and plate number can also be adopted.
Single Washer Stacked in Parallel
In Series Series-Parallel
Assembling
Disc orientation when assembling, is important to guarantee a correct functioning of the stack and its long life. Basically the disc which is in contact with the edge has to be held by its outer edge. This reduces contact pressure, as the same force is acting over a bigger surface. That reduces the possibility of contact areas cracking. If the number of discs used is not even, the disc which will be held by its outer edge is the one on the side where the force is occuring.
The guide bar (internally-guided) or guide bush (externally-guided) shall be adopted as the guiding part of disc spring. Here is the table of recommended size of gaps between guiding parts and disc spring.
Tolerance
The following deviations are laid down in DIN EN 16983 (Previously DIN2093) standards:
Tolerances on thickness, free overall height & spring load
| Outer Dia/ Inner Dia | OD | ID | ||
| H12 | H13 | H12 | H13 | |
| 8 ~ 10 | -0.15 | -0.22 | + 0.15 | + 0.22 |
| ＞10 ~ 18 | -0.18 | -0.27 | + 0.18 | + 0.27 |
| ＞18 ~ 30 | -0.21 | -0.33 | + 0.21 | + 0.33 |
| ＞30 ~ 50 | -0.25 | -0.39 | + 0.25 | + 0.39 |
| ＞50 ~ 80 | -0.30 | -0.46 | + 0.30 | + 0.46 |
| ＞80 ~ 120 | -0.35 | -0.54 | + 0.35 | + 0.54 |
| ＞120 ~ 180 | -0.40 | -0.63 | + 0.40 | + 0.63 |
| ＞180 ~ 250 | -0.46 | -0.72 | + 0.46 | + 0.72 |
| ＞250 ~ 315 | -0.52 | -0.81 | + 0.52 | + 0.81 |
| ＞315 ~ 400 | -0.57 | -0.89 | + 0.57 | + 0.89 |
| ＞400 ~ 500 | -0.63 | -0.97 | + 0.63 | + 0.97 |
Tolerances on thickness, free overall height & spring load
| Group | t | t tolerance | Ho tolerance | F (0.75%) tolerance |
1 | 0.2 ≤ t ≤ 0.6 | +0.02/-0.06 | +0.1/-0.05 | +25%/-7.5% |
| 0.6<t<1.25 | +0.03/-0.09 | |||
2 | 1.25≤t≤2 | +0.04/-0.12 | +0.15/-0.08 | +15%/-7.5% |
| 2<t≤3 | +0.2/-0.1 | |||
| 3<t≤3.8 | +0.3/-0.15 | +10%/-5% | ||
| 3.8<t≤6 | +0.05/-0.15 | |||
| 3 | 6<t≤14 | ±0.1 | ±0.3 | ±5% |
Sunzo DIN2093 Disc Spring Size List click here
Sunzo can produce both metric disc springs and inch disc springs
We can also customize according to your requirement.
Sunzo can also provide technology service, help you design the washers.
Contact us now
Email us lucy@sunzospring.com or call us +86 152 5188 1042 (Wechat)
Application
Elevator Wind Power
Sea Vessel Chemical Industry
