Interpretation of Performance Index:Deformation Energy Density of Disc Spring and Its Engineering Significance

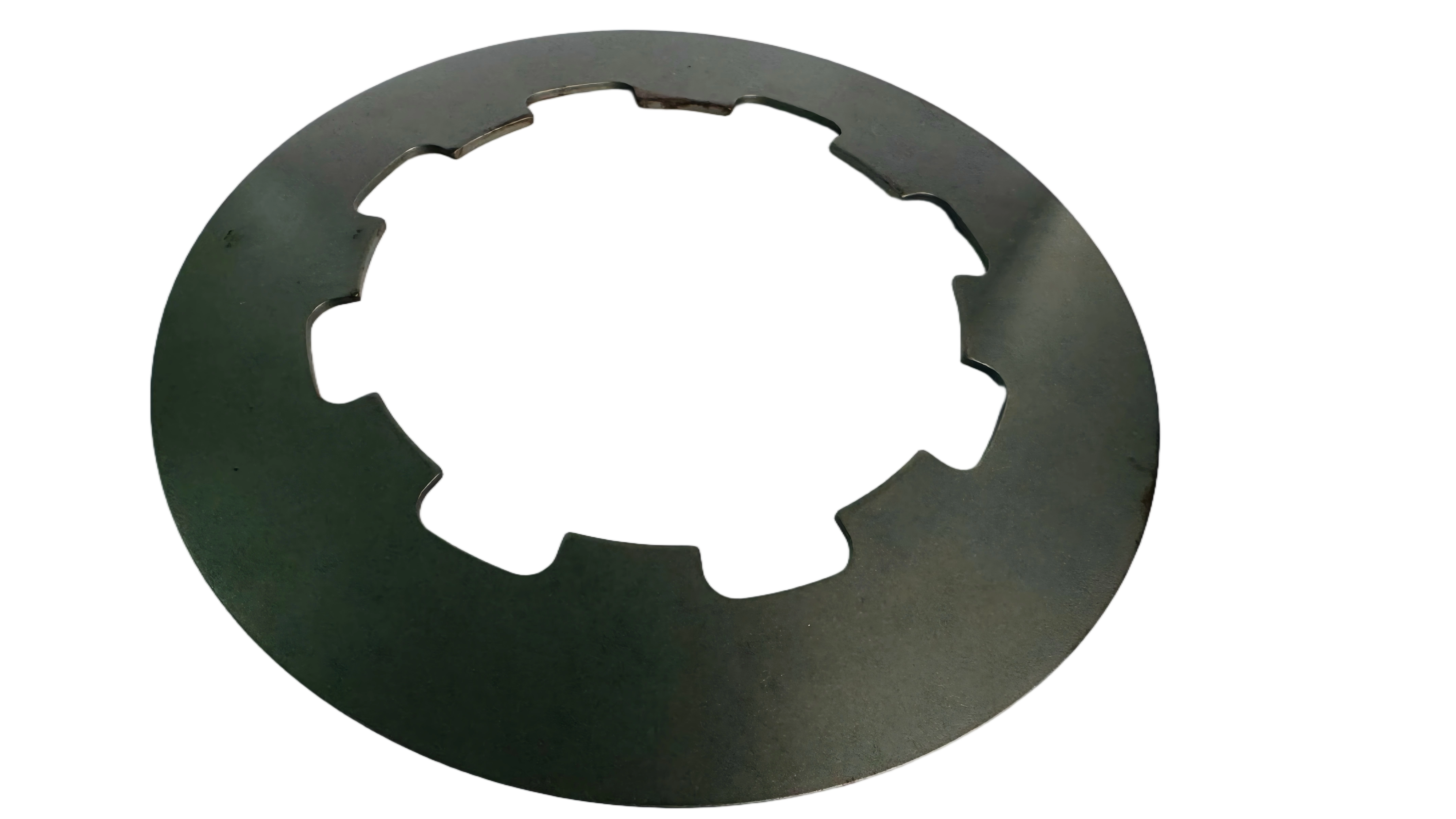

In modern engineering design that prioritizes compact equipment and efficient energy management, energy density has become a key metric for evaluating the performance advantages of elastic components. Disc springs, renowned for their high energy storage capacity, demonstrate this advantage through deformation energy density (energy stored per unit mass). Based on national standards and engineering data for disc springs, Jiangsu Sunzo Spring provides reference values for the energy density of standard disc spring series and their selection significance.
The deformation energy density, typically expressed in joules per kilogram (J/kg), directly reflects the energy storage efficiency of disc spring materials. For the standard series compliant with the GB/T 1972 National Standard for Disc Springs:
Standard disc spring, Class A (h₀/t ≈ 0.4): approximately 240 J/kg
Standard disc spring, Class B (h₀/t ≈ 0.75): approximately 190 J/kg
Standard C-type disc spring (h₀/t ≈ 1.3): approximately 175 J/kg
The data show a clear trend: the energy density of type A disc spring is the highest, and that of type C is the lowest.
A The disc spring has the high stiffness characteristic of approximate linearity, and can accumulate the elastic energy earlier and faster in the process of flattening, so it has the strongest energy storage capacity per unit mass.
B The stiffness curve of the class C disc spring is gradually flat (non-linear enhancement), and the total energy stored in the flat state is relatively small under the same mass.
Understanding the energy density data can provide important basis for the design and selection of disc springs.
1. The pursuit of high energy storage and lightweight: If the core requirement is to store maximum energy in the smallest mass or space (such as some energy recovery and release devices), A-class disc springs are usually the first choice.
2. Large stroke and buffer: If the application is more focused on obtaining large working stroke and specific nonlinear buffer characteristics, the relatively low energy density of the B or C type disc spring may be accepted in exchange for its displacement advantage.
3. Comprehensive system design: In the clutch, safety valve and other devices, the speed of energy release (related to stiffness), space constraints and the shape of force-displacement curve should be considered comprehensively. Energy density is one of the key but not the only decision parameters.
At Jiangsu Sunzo Spring, we deliver not only standardized product specifications, but also empower clients to decode the engineering logic behind the data.
Performance data support: We provide detailed product performance curves and energy calculation support to help you accurately evaluate whether the selected disc spring meets the system's energy requirements.
Customized Development: When standard series energy density or characteristics cannot fully meet requirements, our technical team can achieve optimal balance between energy storage, force value and stroke through customized design by adjusting materials and optimizing cross-sectional coefficient (h₀/t).
System Application Consultation: From a system integration perspective, we provide configuration solutions for disc springs in energy storage, shock absorption, and vibration damping applications.
We are committed to becoming your partner for high-efficiency and flexible solutions, helping you make better design choices through clear technical data and professional application analysis, thereby enhancing equipment performance and efficiency.
