Analysis of Fatigue Failure Causes and Comprehensive Analysis of Life Extension Technology for Disc Spring

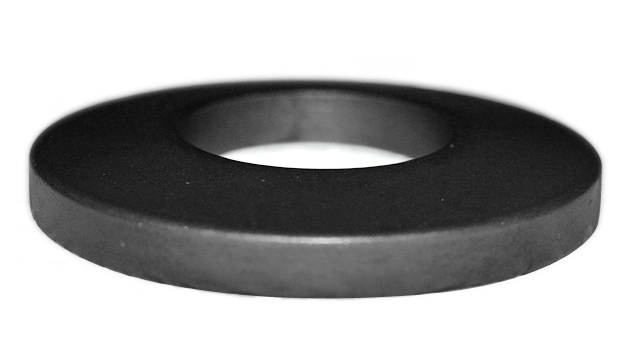

In mechanical engineering, disc springs (abbreviated as disc springs) serve as critical elastic components widely utilized in high-end industrial applications such as automotive suspensions, petrochemical equipment, and rail transportation systems. Industry research data indicates that fatigue fracture accounts for over 68% of disc spring failure cases, primarily caused by the combined effects of alternating load cycles, localized stress concentration, material internal defects, and environmental corrosion. This paper systematically analyzes the microscopic mechanisms underlying disc spring fatigue fracture and, incorporating the latest process advancements from 2025 to 2026, provides actionable engineering prevention solutions.
The formation of fatigue sources exhibits significant spatial specificity, with over 90% originating from stress concentration zones at the inner and outer edges of disc springs (e.g., chamfered transitions, hole edges) or material defects. Scanning electron microscopy (SEM) observations reveal that fracture sources in 50CrVA steel disc springs are often accompanied by non-metallic inclusions (primarily Al₂O₃ and MnS) measuring 10-21 μm in diameter. These inclusions create stress gradients with the work-hardened surface layer, triggering microcrack initiation under alternating loads. According to the fracture mechanics Tanaka-Akiniwa model, when the stress intensity factor ΔK exceeds the material threshold value, dislocation slip bands accumulate at grain boundaries, progressively forming initial cracks with lengths of 0.1-2 mm. A case study from nuclear power equipment demonstrates that a 1 μm increase in surface roughness Ra reduces crack initiation life by 15-20%.
The fatigue crack propagation process exhibits a typical three-stage characteristic: In the initial stage (Zone I), cracks propagate slowly at a rate of 10⁻⁷–10⁻⁵ mm per cycle, with fracture surfaces displaying shell-like striations spaced 5–10 μm apart. The striation spacing shows a positive correlation with stress amplitude (increasing by 2–3 μm for every 100 MPa rise in stress amplitude). During the stable propagation stage (Zone II), the expansion rate conforms to the Paris formula da/dN = C(ΔK)^m, with H13 steel disc springs achieving a propagation rate of 3×10⁻⁴ mm per cycle under 600 MPa stress amplitude. In the final instability stage (Zone III), cracks rapidly propagate beyond critical dimensions, with instantaneous fracture zone areas reaching 25–40% of the total surface. Environmental factors significantly influence propagation behavior—oxidative corrosion of disc spring steel at temperatures above 300°C can increase propagation rates by 2–3 times.
1. Structural Optimization Design: Based on Chinese National Standard GB/T1972-2023 and German Standard DIN2093, finite element analysis (FEA) was employed to optimize the diameter ratio C (recommended range: 1.7-2.5) and internal taper height ratio h₀/t (static load: 0.4-0.75; variable load: 0.25-0.6). A case study on wind power equipment demonstrated that increasing the edge chamfer radius from 0.5mm to 1.2mm reduced the stress concentration factor from 3.8 to 2.1, resulting in over 40% improvement in fatigue life.
2. Material performance enhancement: The application of secondary tempering process (560°C × 120 minutes × 2 cycles) to H13 steel reduces inclusion size by 40% (from 15-21 μm to 10-17 μm) and improves fatigue life by over 30%. For harsh environments, 2195 aluminum-lithium alloy or TC4 titanium alloy is recommended, as their fatigue limits exceed those of conventional spring steel by 15-25%. Raw materials must ensure non-metallic inclusion levels do not exceed Grade 2 as specified in GB/T10561.
3. Surface strengthening process: Shot peening treatment with projectile diameters of 0.2-0.3 mm is employed to form a residual compressive stress layer (0.15-0.3 mm depth, stress values reaching-400 to 600 MPa) on the surface, effectively suppressing crack initiation. Combined with medium-frequency induction heating (1000°C × 20 min) and deformation heat treatment, the surface hardness can be increased to 48-52 HRC while maintaining core toughness (elongation ≥11%).
4. Condition Monitoring System: Establish a real-time load spectrum monitoring system to ensure working loads do not exceed 80% of the allowable value. For variable load conditions, it is recommended to adopt fiber Bragg grating sensor embedding technology for real-time strain monitoring (accuracy ±5με). After implementing this technology at a petrochemical enterprise, the disc spring replacement cycle was extended from 3 months to 18 months.
To meet the application requirements of disc springs in various industries, customized anti-fatigue solutions can be provided, including material selection, structural simulation, process optimization, and service life evaluation services. The technical team can offer technical support compliant with standards such as GB/T1972-2023 and DIN2093 based on specific operating conditions.
1. Coal mine gas extraction equipment: In the failure cases of MK series drilling rigs with disc springs, 73% were caused by fatigue fractures due to insufficient jaw clamping force. By adopting secondary tempering H13 steel and shot peening reinforcement treatment, the clamping force stability was improved by 28%, and the mean time between failures was extended from 120 hours to 350 hours.
2. Wind Turbine Pitch System: An accident analysis of a 2MW unit's disc spring fracture in a wind farm revealed that reduced material toughness under low-temperature conditions (-30°C) was the primary cause. After replacing the components with low-temperature specialized steel exhibiting an impact energy ≥35J at-40°C, the fracture rate decreased by 92%.
3. High-speed rail braking system: Featuring a topology-optimized disc-spring assembly, this design achieves 30% weight reduction and 50% fatigue life extension through additive manufacturing technology, fully compliant with EN13977-2 standards.
According to the "China Industrial Spring Market Report 2026-2032", intelligent self-perceiving disc springs are expected to become the mainstream development trend. These products integrate micro-sensors and AI algorithms, enabling real-time monitoring of fatigue damage accumulation and predicting remaining life with an error margin of ≤10%. Meanwhile, breakthroughs have been achieved in the application research of nickel-titanium shape memory alloy disc springs in extreme environments (-200°C to 600°C), with fatigue cycle life exceeding 10⁷ cycles.
Conclusion: Preventing disc spring fatigue fracture requires coordinated efforts across the entire supply chain encompassing materials, design, manufacturing processes, and quality monitoring. The technical solutions presented in this study enable enterprises to systematically enhance product reliability and reduce lifecycle costs. It is recommended to conduct regular life assessments based on fracture mechanics principles, coupled with continuous optimization leveraging advancements in material science and manufacturing technologies, to meet the stringent requirements for elastic components in high-end equipment applications.
