Ring Spring (Friction Spring) Technology: An Engineering Solution for Efficient Damping and Energy Management in Multiple Fields
In industrial elastic component systems, ring springs (commonly known as friction springs) have become a key technical solution for addressing heavy-duty impact, precision cushioning, and vibration control challenges, thanks to their unique multi-ring conical structure and high damping properties. Leveraging mature disc spring technology and engineering expertise, Jiangsu Sunzo Industry provides a systematic analysis of the application principles and value realization of ring springs in critical industrial fields.

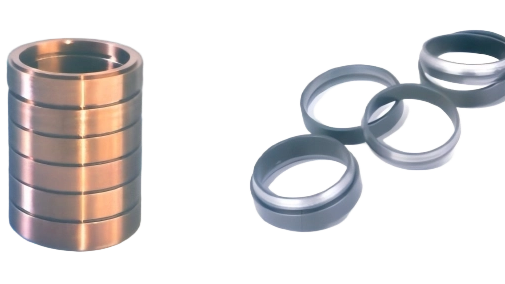

The annular spring is formed by alternating stacking of multiple outer rings and inner rings with matching conical surfaces. Its core advantages lie in:
High damping characteristic: The sliding friction between the inner and outer cone surface converts most of the impact kinetic energy into heat energy, and the damping coefficient can reach 0.10.3, which is much higher than that of ordinary helical spring.
Large deformation energy absorption: can absorb and dissipate a large amount of impact energy in a relatively compact space, and the energy storage density per unit volume is high.
The stable position displacement characteristic: the unloading curve and loading curve are separated obviously, which can effectively restrain the rebound and realize the "soft contact, hard stop".
Mechanism: As the core element of the coupler buffer, it absorbs and dissipates the impact kinetic energy up to several million joules through the friction sliding between the ring springs during the train coupling, speed regulation and emergency braking.
The engineering value is that the peak force of the coupler is significantly reduced, the structure of the car body is protected, the passenger comfort is improved, and the fatigue damage of the key parts is reduced.
Application design: installed in the wharf bollards or marine collision protection system, through multi-ring series combination, adapt to the berthing energy of different tonnage ships.
Technical points: Energy matching design should be made according to the tide level, ship mass and berthing speed, so as to ensure that the impact energy can be absorbed effectively under all working conditions and the wharf and ship structure can be protected.
System integration: As the buffer or damping element of the balance system at the end of the track, it prevents the door or hoist from colliding with the limit device due to inertia.
Advantages: Compared with hydraulic buffers, annular springs require no maintenance, have no oil leakage risk, and demonstrate superior environmental adaptability, making them particularly suitable for harsh working conditions in steel mills and mining operations.
In large-scale equipment such as rolling mills and straightening machines, it serves as an overload protection and mechanical limit device. When the equipment exceeds its travel limit due to malfunction or misoperation, the ring spring assembly can reliably absorb the impact, preventing damage to expensive core components (e.g., rolls, guide frames) from rigid collision.
The key point of design is to calculate the maximum possible impact energy of the equipment accurately and design the specifications, quantity and pre-tightening force of the ring spring accordingly.
It is applied to the terminal of the running mechanism of the bridge and gantry crane, and serves as the ultimate safety buffer barrier.
Safety significance: In the extreme case of electrical limit failure, it provides reliable mechanical protection and absorbs the residual kinetic energy of the crane running at full load and high speed, which is the last line of defense to ensure the safety of personnel and equipment.
Function core: In automatic weapons (such as machine guns and automatic cannons), it is used to absorb the enormous recoil impulse generated during firing.
Performance requirements: Not only high energy absorption rate, but also high consistency of action and anti-fatigue performance, to ensure the accuracy of continuous firing and the life of the weapon. This puts forward extremely high requirements for the material (such as high performance spring steel), heat treatment and manufacturing precision.
In the impact equipment such as pneumatic hammer and hydraulic breaker, it is used to control the impact stroke and absorb the rebound energy.
Technical effect: Impact energy is concentrated on the work object, the vibration is reduced to the frame, the operation comfort and tool life are improved.
The successful application of ring spring depends on the precise design, rigorous manufacture and rich experience.
Forward design capability: We can perform energy matching calculations and structural optimization design based on your specific operating conditions (impact energy, installation space, allowable reaction force, etc.), providing customized solutions.
Material and process expertise: Special materials suitable for high friction and high impact are selected, and controlled atmosphere heat treatment process is adopted to ensure the stable friction coefficient and long life of the ring spring.
System integration expertise: We provide not only individual coil springs, but also comprehensive consulting services for the entire cushioning system design, including guidance, lubrication, and sealing.
Testing and verification: The equipment is equipped with a large-tonnage fatigue testing machine, which can simulate actual working conditions for product verification.
Choosing the ring spring signifies adopting a proven, high-efficiency, and reliable mechanical energy management solution. Partnering with Jiangsu Sunzo Industry means collaborating with a company that combines deep technical expertise and robust engineering capabilities. Together, we will ensure your heavy equipment and precision systems operate with guaranteed safety and stability.
