DIN2093 Disc Spring Product Manual: Specification Parameters and Industrial Application Scenarios Analysis
DIN2093 Standard Disc Spring Full Series: Technical Parameters and Industrial Application Analysis
In industrial applications such as mechanical transmission, vibration damping, and pre-tightening mechanisms, the performance of disc springs directly impacts equipment reliability and service life. As a specialized manufacturer of elastic components, Sunzo Technology Co., Ltd. strictly adheres to the DIN2093 international standard, offering a comprehensive range of disc spring products. This article systematically outlines the technical parameters, selection criteria, and typical applications of DIN2093 disc springs, providing valuable insights for industrial design and equipment maintenance.
DIN2093 is the international standard for disc springs, which is compatible with China's GB/T 1972 standard. This standard specifies the size series, load characteristics, material requirements, and testing methods for disc springs, providing a unified technical reference for global engineering designers.

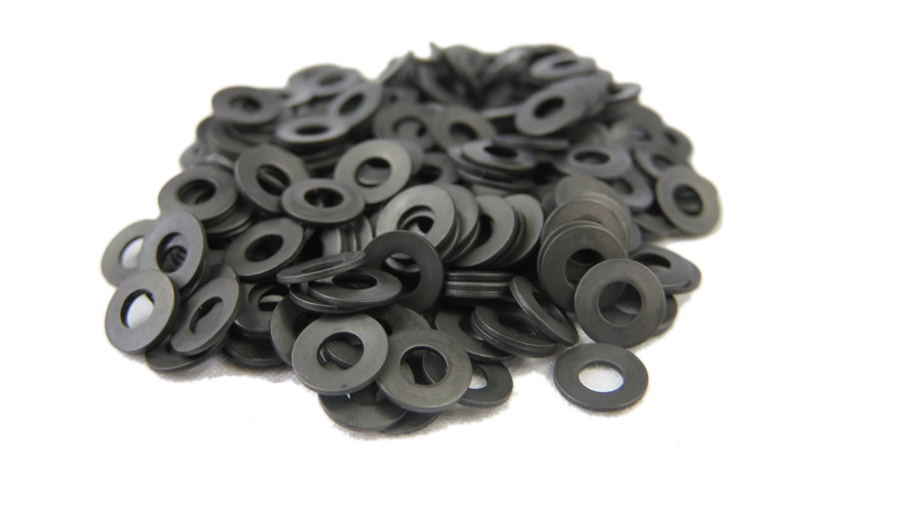

Sunzo's DIN2093 disc springs span the full size spectrum, from miniature (6mm outer diameter) to super-large (600mm outer diameter), meeting diverse industrial requirements. Available in spring steel (50CrV4, 60Si2MnA), stainless steel (SUS302, SUS304, SUS316), and high-temperature alloys (Inconel 718, Inconel X750), these products are engineered for various operational environments.
Each parameter of DIN2093 disc springs corresponds to specific engineering applications:
parameter | symbol | Engineering significance |
external diameter | D | The installation space must match the installation cavity |
bore size | d | The fit dimension shall be determined according to the shaft diameter, with clearance fit required for the guide component. |
thickness | t | The core stiffness parameter is proportional to the cube of the load. |
free height | H₀ | The total height in the unpressurized state determines the initial installation space. |
Flatting height | H₀ h₀ | maximum height at full level |
25%/50%/75% compression load | F | Load values for three key points, used for performance verification |
The following are key technical specifications for the Sunzo DIN2093 standard disc spring (full specifications available upon request from our technical team):
Product Code | external diameter D（mm） | bore size d（mm） | thickness t（mm） | Free height H₀ (mm) | 25% compression load (N) | 50% compression load (N) | 75% compression load (N) | Weight per thousand pieces (kg) |
001 001 | 6.00 | 3.20 | 0.30 | 0.45 | 45.00 | 84.00 | 119.00 | 0.04 |
001 002 | 8.00 | 3.20 | 0.20 | 0.40 | 12.00 | 21.00 | 26.00 | 0.06 |
001 005 | 8.00 | 3.20 | 0.50 | 0.70 | 128.00 | 246.00 | 357.00 | 0.17 |
001 008A | 8.00 | 4.20 | 0.40 | 0.60 | 78.00 | 147.00 | 210.00 | 0.11 |
001 011 | 10.00 | 3.20 | 0.50 | 0.85 | 165.00 | 296.00 | 404.00 | 0.28 |
001 017A | 10.00 | 5.20 | 0.50 | 0.75 | 122.00 | 228.00 | 325.00 | 0.23 |
001 020 | 12.00 | 4.20 | 0.60 | 1.00 | 224.00 | 405.00 | 557.00 | 0.47 |
001 025 | 12.50 | 5.20 | 0.50 | 0.85 | 111.00 | 200.00 | 272.00 | 0.38 |
001 028A | 12.50 | 6.20 | 0.70 | 1.00 | 239.00 | 457.00 | 660.00 | 0.51 |
Note: The complete specifications include A/B/C series and models with support surfaces (t'). For detailed parameters, please contact the technical team.
The Sunzo DIN2093 disc spring offers multiple material options:
Material category | the name of a shop | applicable working condition | |
spring steel | 50CrV4, 60Si2MnA, 65Mn | Conventional industry, high cost-performance ratio | |
stainless steel | SUS302, SUS304, SUS316 | corrosive environment, food and medical | |
precipitation-hardening stainless steel | 177PH | High strength and corrosion resistance | |
high-temperature alloy | Inconel718, InconelX750 | temperatures above 300℃ |
Surface treatment options:
Phosphating: Basic Rust Prevention, Lubricating Oil Adsorption
Dacron: High Corrosion Resistance, No Hydrogen Embrittlement
Blue: Economy Protection
Polishing: Reducing the friction coefficient
Teflon: Low Friction, Chemical Resistance
DIN2093 disc springs are widely used in:
Heavy Machinery: Buffer of Press Machine and Limit of Mining Machinery
Power Energy: Wind Power Locking and High Voltage Switching Mechanism
Construction machinery: Clutch pressing, brake reset
Sealing Pre-tightening and Energy Storage of Valve and Pipeline
Rail Transit: Coupling Buffer and Shock Absorber
Precision instruments: force control, displacement compensation
Sunzo provides professional selection services:
Recommend the optimal specifications based on load, space, and operating conditions
Assist in calculating composite schemes (superposition, overlay, composite)
Provide sample testing and performance verification
The technical support team is available 24/7
Select Three Crowds to get:
Backed by over 30 patented technologies
A comprehensive quality management system (ISO 9001, IATF 16949)
Technical capabilities in national standard development
The complete industrial chain from raw materials to finished products
