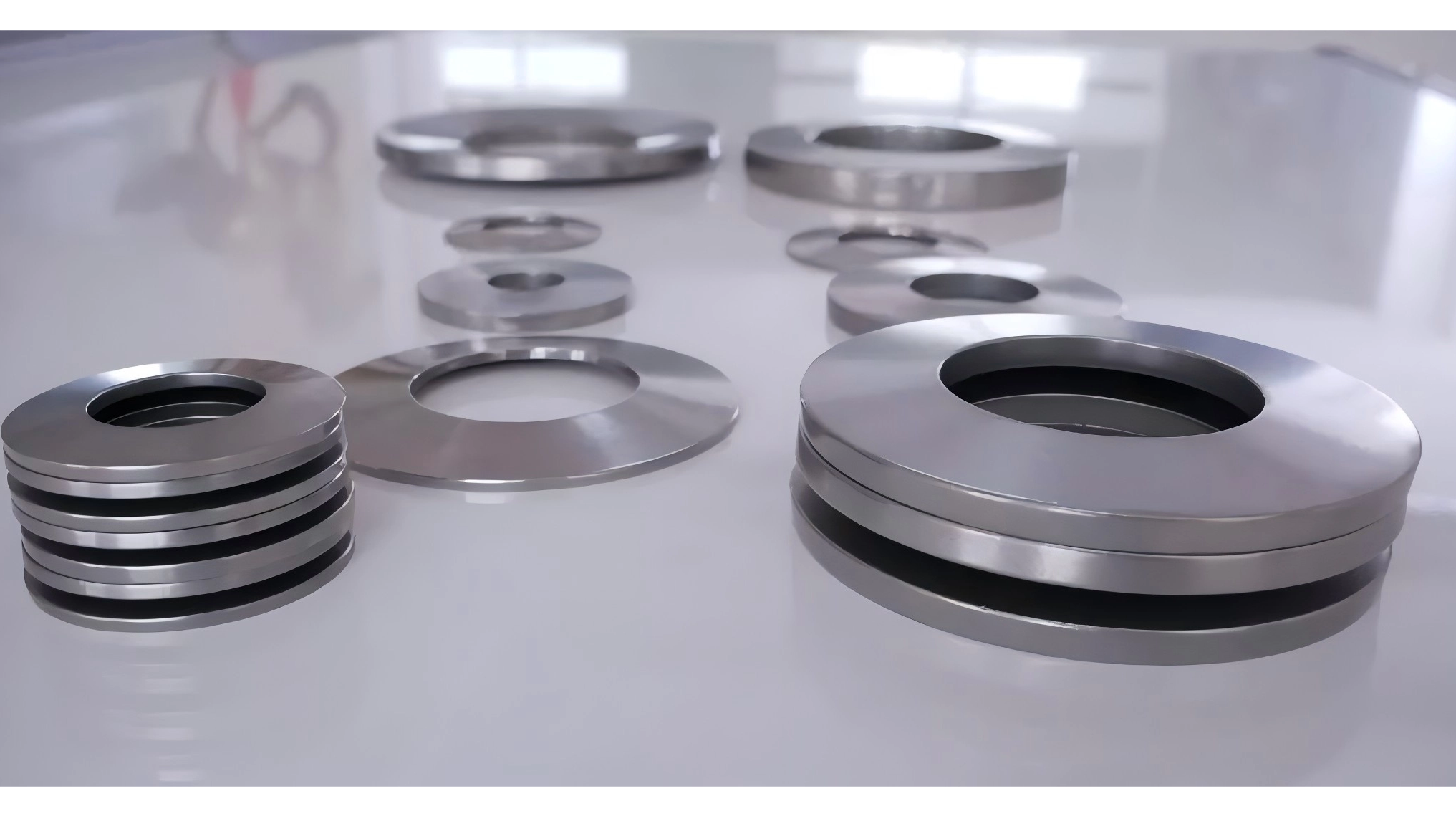

Product Introduction of Three-Group DIN2093 Standard Disc Spring
Sunzo specializes in manufacturing disc springs that comply with DIN2093 standards. This standard originates from German industrial standards and is equivalent to the Class I precision requirements specified in China's GB/T 1972 National Standard for Disc Springs. It serves as a critical technical specification for internationally recognized disc spring products.
DIN2093 disc springs, renowned for their standardized and series-based design, are widely used in global machinery manufacturing, automotive industry, energy equipment, and construction machinery sectors. With advanced manufacturing processes and a comprehensive quality system, Sunzo Technology delivers disc springs with stable performance and complete specifications to its customers.
Core product advantages:
Strictly adhering to DIN2093 standards, with dimensions and load parameters fully compliant with international general specifications.
We offer a full range of products with outer diameters from 6mm to 600mm, covering all specifications.
Multiple material options are available: spring steel (51CrV4, 60Si2Mn, 65Mn), stainless steel (SUS302, SUS304, SUS316), precipitation-hardened stainless steel (177PH), and high-temperature alloy (Inconel 718, Inconel X750).
Diversified surface treatments: phosphating, Dacromet, blueening, polishing, Jumeite, passivation, Teflon
Each product has undergone rigorous load testing and dimensional inspection.
The DIN2093 standard specifies the dimensions, materials, heat treatment, and load characteristics of disc springs, ensuring interchangeability among products from different manufacturers. The DIN2093 disc springs produced by Sunzo Technology fully comply with the standard requirements, with all dimensions—including outer diameter, inner diameter, thickness, and free height—controlled within the standard tolerance limits.
The standard specifies the load values of disc springs at 25%,50%, and 75% compression, providing users with precise selection criteria. Sunzo Technology conducts random load tests on each batch of products prior to shipment to ensure that the measured values deviate within the permissible range of the standard values.
The DIN2093 disc spring can be manufactured from various materials depending on operational requirements.
51CrV4/50CrVA: High-temperature resistant and excellent fatigue resistance, suitable for dynamic load applications
60Si2Mn: High strength, good cost performance, suitable for conventional working conditions
65Mn: Good Machinability, Suitable for Thin Disc Spring
SUS304/SUS316: Excellent corrosion resistance, suitable for chemical, food, medical and other fields
177PH: Precipitation-hardened stainless steel with both strength and corrosion resistance
Inconel718/InconelX750: High-temperature alloy, suitable for environments above 300°C
Sunzo Technology provides a variety of surface treatment processes to meet corrosion protection requirements in different environments:
Phosphating: Basic anti-corrosion, capable of adsorbing lubricating oil
Dacron: Excellent salt spray resistance with no hydrogen embrittlement risk
Blue: Economical protection, suitable for dry environments
Jumeite: Environmentally Friendly Coating with Excellent Anti-corrosion Performance
Teflon: Low friction coefficient, suitable for lubrication requirements
The following are the core specifications of DIN2093 standard disc springs manufactured by Sunzo Technology, including dimensions, 25%/50%/75% compression load capacity, and unit weight. For the complete specification sheet, please contact our technical department.
Product Code | Outer Diameter D (mm) | Inner Diameter d (mm) | Thickness t (mm) | Free Height H₀ (mm) | 25% Compression | 50% Compression | 75% Compression | Weight (kg) |
001 001 | 6.00 | 3.20 | 0.30 | 0.45 | 0.04mm/45N | 0.08mm/84N | 0.11mm/119N | 0.04 |
001 008A | 8.00 | 4.20 | 0.40 | 0.60 | 0.05mm/78N | 0.10mm/147N | 0.15mm/210N | 0.11 |
001 017A | 10.00 | 5.20 | 0.50 | 0.75 | 0.06mm/122N | 0.13mm/228N | 0.19mm/325N | 0.23 |
001 028A | 12.50 | 6.20 | 0.70 | 1.00 | 0.08mm/239N | 0.15mm/457N | 0.23mm/660N | 0.51 |
001 045A | 16.00 | 8.20 | 0.90 | 1.25 | 0.09mm/363N | 0.18mm/697N | 0.26mm/1013N | 1.05 |
001 068A | 20.00 | 10.20 | 1.10 | 1.55 | 0.11mm/548N | 0.23mm/1050N | 0.34mm/1521N | 2.01 |
001 087A | 25.00 | 12.20 | 1.50 | 2.05 | 0.14mm/1040N | 0.28mm/2007N | 0.41mm/2926N | 4.40 |
001 105A | 31.50 | 16.30 | 1.75 | 2.45 | 0.18mm/1391N | 0.35mm/2669N | 0.53mm/3871N | 7.84 |
001 128A | 40.00 | 20.40 | 2.25 | 3.15 | 0.23mm/2336N | 0.45mm/4481N | 0.68mm/6500N | 16.00 |
In the hydraulic disc spring actuator developed by Sunzo Technology for China National Nuclear Corporation (CNNC), the disc spring serves as the core energy storage component. A motor-driven oil pump generates hydraulic pressure to compress the spring and store energy. When activation is required, the hydraulic system releases pressure, instantly releasing the stored energy to enable rapid circuit breaker operation. This application imposes extremely high demands on the fatigue life and load stability of the disc spring.
In industrial valves and piping systems, DIN2093 disc springs provide continuous sealing preload to compensate for dimensional changes caused by temperature variations and pressure fluctuations. Stainless steel disc springs are widely used in chemical pipelines, high-pressure switches, and similar equipment to resist medium corrosion.
In wind turbine pitch control systems and yaw brake mechanisms, disc spring assemblies provide stable braking force and cushioning protection. Their high rigidity and compact axial dimensions make them ideal for large-scale wind power equipment.
In the clamping mechanism and hydraulic locking device of CNC machine tools, the disc spring provides strong clamping force through overlapping combination, ensuring machining accuracy and operational safety. Its force designability and flexible combination offer reliable elastic solutions for precision equipment.
In the steering system and axle brake device, DIN2093 disc spring is a key safety component that provides stable and reliable braking force to ensure vehicle safety.
Select the appropriate specification based on installation dimensions (inner diameter, outer diameter, axial height). The recommended clearance between the guide and disc spring is as follows:
Outer diameter ≤16mm: clearance 0.2mm
Outer diameter 1620mm: clearance 0.3mm
Outer diameter 2026mm: clearance 0.4mm
Outer diameter 2631.5mm: clearance 0.5mm
Outer diameter 31.550mm: clearance 0.6mm
Outer diameter 5080mm: clearance 0.8mm
Outer diameter 80140mm: clearance 1.0mm
Outer diameter 140250mm: clearance 1.6mm
Outer diameter>250mm: clearance 2.0mm
Select the appropriate specification from the parameter table based on the required working load and compression volume of the equipment. The standard provides load values for 25%,50%, and 75% compression volumes, which can be used to calculate force values at other compression points.
Single-use: Suitable for applications with limited space and moderate load capacity
Laminated assembly (parallel): Multiple sheets stacked in the same direction, with load doubling while deformation remains constant
Tandem assembly (series): Multiple pieces stacked in reverse order, with deformation increasing exponentially while load remains constant
Composite combination: Simultaneous increase in load and deformation
Select materials based on the working environment:
Conventional environment: 51CrV4 or 60Si2Mn
Corrosion environment: SUS304/SUS316 stainless steel
High-temperature environment: Inconel 718/Inconel X750
High-strength and corrosion-resistant: 177PH precipitation-hardened stainless steel
Surface treatment options:
Conventional preservation: Phosphating
High Salt Fog Resistance Requirements: Dacromet, Jumeite
Low friction requirement: Teflon coating
Economy protection: Blue hair
Participate in the formulation of international ISO disc spring standards and national standards
possessing a complete industrial chain from raw materials to specialized equipment and product manufacturing
Self-developed multiple production lines ensure stable production capacity and quality
Certified to ISO 9001, IATF 16949, ISO 14001, and OHSAS 18001 standards
Equipped with a modern testing center capable of comprehensive testing for dimensions, load, hardness, and metallography.
Each batch of products undergoes performance validation to ensure delivery quality
A professional leaf spring design team can assist clients with selection calculations and solution optimization.
Customized Material Selection and Heat Treatment Process for Special Operating Conditions
Provide value-added services including sample testing, failure analysis, and on-site technical guidance
Sunzo looks forward to collaborating with you to provide high-quality disc springs compliant with DIN2093 standards and professional technical support.
For the complete DIN2093 leaf spring specification manual or to inquire about selection, please contact our Marketing Department.
