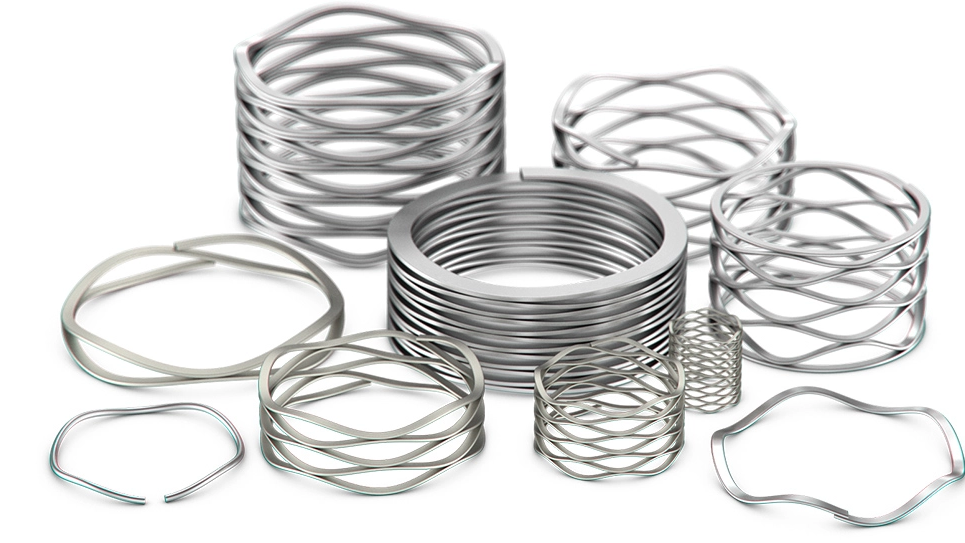

Within the wave spring family, single-layer and multi-layer configurations represent two fundamental design types. A single-layer wave spring utilizes a single wave plate to operate independently, offering a simple structure and controllable cost; in contrast, a multi-layer wave spring combines two or more wave plates, enabling greater load capacity to meet the requirements of heavy-duty, compact operating conditions. Understanding the differences between these two types is the essential first step in making the appropriate selection.
Jiangsu SUNZO Elastic Technology Co., Ltd. possesses both single-layer and multi-layer corrugated spring R&D and manufacturing capabilities. Leveraging its precision winding and forming processes along with a comprehensive testing system, the company assists its customers in selecting the appropriate product type based on specific operating conditions.
Regarding the selection between multi-layered wave springs and single-layer products, industry experience indicates that load requirements and spatial constraints are the decisive factors: multi-layered designs offer distinct advantages under high-load, space-constrained conditions, whereas single-layer designs are more cost-effective under moderate-load, space-abundant conditions. Selecting the appropriate type based on operational requirements enables comprehensive optimization.
A single-layer corrugated spring consists of a single metal corrugated plate, which generates elastic force through axial deformation of the corrugation peaks; it features a simple structure and a fixed number of layers, making it suitable for applications with moderate load requirements. A multi-layer corrugated spring comprises two or more corrugated plates arranged in phase, with available layer counts of 2, 3, 4, 5, or more, offering greater structural flexibility.
Wave plate combinations can be implemented in either superposition or opposition configurations: in superposition, all wave plates are aligned in the same direction, resulting in a multiplied increase in total load; in opposition, the wave plates are oriented in opposite directions, leading to an increased total displacement. Designers can flexibly adjust the number of layers and the combination method based on their load and stroke requirements.
Structural differences directly result in performance differences. Under the same outer diameter and free-height constraints, a multi-layer design can achieve greater load capacity—a feat difficult to accomplish with a single-layer structure—which underscores the significant value of multi-layer corrugated springs in heavy-load, compact application scenarios.
From an assembly practice perspective, the combination method of multi-layer wave springs has a direct impact on performance. The distinction between overlapping and side-by-side arrangement should be clearly specified in drawings and process documentation to avoid confusion during on-site assembly. When necessary, illustrative diagrams should be included in the assembly guidelines to ensure consistent quality across batch production.
Regarding cost, single-layer wave springs exhibit lower costs, whereas multi-layer wave springs incur slightly higher material and manufacturing costs; however, their superior load-bearing capacity and space-saving advantages yield significant overall benefits. Selecting appropriate types based on operating conditions can achieve an optimal balance between cost and performance.
The load capacity of multi-layered wave springs ranges from 10 N to 20,000 N, with the load capacity increasing as the number of layers increases. For applications requiring high preload—such as bearing positioning and seal compensation—a multi-layer design provides ample load margin, thereby avoiding the need to increase dimensions due to insufficient load capacity in a single-layer design.
Precise load control represents another advantage of multi-layer design. By strategically combining the number of layers with their configuration, the load can be accurately adjusted across a wide range. Coupled with internal diameter tolerances of ±0.1 mm and load tolerances of ±8%, this approach ensures consistent and stable product performance.
For precision applications requiring micro-load capabilities, multi-layer design offers flexible adaptability. By reducing the number of layers and optimizing wave height and material selection, this approach can deliver micronewton-level precise elastic force, meeting the stringent requirements of industries such as semiconductor equipment and medical devices.
Regarding the tolerance requirements for multi-layer products, the greater the number of layers, the higher the consistency requirements for individual layers. During procurement, it is advisable to focus on the supplier's capability to control inter-layer alignment, verify that the thickness of each layer's waveplate is consistent, and avoid load distribution issues after assembly, thereby ensuring stable and predictable product performance.
Wave springs are renowned for their ability to save axial space; under the same load, their axial height is only one-third to one-half that of helical springs. The multi-layer design retains this advantage while further increasing the load density per unit volume.
For assembly areas with extremely limited axial space, multi-layer corrugated springs can increase load capacity without increasing height, or reduce the diameter without compromising load capacity, thereby providing additional possibilities for compact design.
Improvements in spatial efficiency directly translate into equipment benefits: motors and reducers can reduce axial length, robotic joints can be made more compact, and hydraulic valve bodies can be downsized; these enhancements positively impact both lightweight design and overall machine performance.
For applications subject to significant temperature variations, the material selection for multi-layer wave springs should balance the upper temperature limit with elastic property retention; where necessary, temperature cycling tests should be conducted to ensure that fluctuations in the preload due to thermal expansion and contraction remain within acceptable limits, thereby guaranteeing the reliability of the solution under actual operating conditions.
Regarding the structure, the individual wave plates of a multi-layer wave spring are assembled in a specific configuration; the inter-layer alignment precision critically affects performance. Selecting a manufacturer with well-established manufacturing processes ensures inter-layer consistency, thereby guaranteeing stable and predictable overall performance of the assembly.
The multi-layered corrugated springs are precision-wound and formed, featuring continuous and intact fiber materials that ensure uniform stress distribution across the corrugation peaks, thereby eliminating uneven wear and stress concentration. Combined with the selection of high-elasticity materials and stress-relief heat treatment, these products have been validated through millions of fatigue tests, demonstrating stable pre-tension force over extended periods of operation.
In a multi-layer structure, the individual layers deform in coordination during operation, resulting in uniform load distribution. This reduces the stress experienced by each individual layer, thereby enhancing the fatigue life. For equipment requiring prolonged continuous operation, this characteristic significantly reduces the frequency of maintenance.
During operation, there is no metal collision or friction, and vibration and noise levels are low. This reduces the contamination of equipment by wear particles, making the system particularly suitable for hydraulic systems and precision mechanisms, thereby further enhancing the overall reliability of the system.
For high-speed operating conditions, the dynamic stability of multi-layer wave springs warrants close attention. It is recommended to evaluate their fatigue performance under high-frequency vibration; if necessary, engage with the supplier to conduct specialized validation tests, ensuring the long-term reliability of the product under the target rotational speeds and vibration conditions.
When selecting a structural configuration, it is essential to first define the load requirements: if the load is moderate and sufficient space is available, a single-story structure may suffice; if the load is high or space is limited, a multi-story structure should be prioritized. The load range serves as the primary criterion for distinguishing between single-story and multi-story configurations.
The second consideration is spatial and stroke constraints. Within a free height range of 2.0 mm to 50 mm and a working stroke range of 0.5 mm to 20 mm, multi-layer designs can be adapted by adjusting the number of layers and the number of waves; for large-diameter products, a multi-wave design is preferred to achieve more uniform load distribution.
The second consideration is the operating environment: the operating temperature determines the material selection, with spring steel, stainless steel, and high-temperature alloys each having their respective applicable ranges; surface treatment should be selected based on anti-corrosion and cleanliness requirements—such as blackening, galvanizing, passivation, Dacromet, or zinc-aluminum coatings.
To control maintenance costs, selecting a proven multi-layer wave spring can reduce the frequency of issues such as loosening, abnormal noise, and seal leakage, thereby lowering downtime losses and repair costs. Over its entire service life, this approach often yields lower total cost of ownership compared to low-cost alternatives that require frequent replacements.
Regarding application, single-layer configurations are suitable for conventional pre-tensioning, while multi-layer configurations are ideal for heavy-load, compact operating conditions; together, they complement each other to cover a wide range of applications. Understanding their respective differences enables flexible selection during design, thereby enhancing the overall rationality of the solution.
Jiangsu Sunzo Spring Elastic Technology Co., Ltd., established in 2006, operates a research and development center in Nanjing and a production base in Sihong, Jiangsu Province. The company has obtained ISO9001 and IATF16949 quality system certifications, has participated in the development of numerous national industry standards and international ISO standards, and has accumulated over 30 invention patents.
The company's product portfolio encompasses single-plate and multi-plate corrugated springs, corrugated washers, and various elastic components, manufactured from materials including 50CrVA, 65Mn, 301/304 stainless steel, and 17-7PH and Inconel alloys; comprehensive material selection solutions can be provided based on specific operating conditions.
Whether for standard specifications or non-standard customizations, Sunzo provides product selection calculations, operating condition analyses, and structural optimization services, helping customers make informed choices between single-story and multi-story configurations, while enabling them to rapidly obtain validated samples and support for mass production.
Regarding the management of design documentation, it is recommended to systematically archive the selection parameters, test data, and application cases for both single-layer and multi-layer wave springs, thereby establishing an internal corporate technical knowledge base. This repository will provide a solid foundation for rapid component selection and solution comparison in subsequent projects, ultimately enhancing the operational efficiency of the design team.
Common Question 1: How can you quickly distinguish between single-stage and multi-stage configurations? First, consider the load requirements: if the load is high and space is limited, opt for a multi-stage configuration; second, consider the stroke requirements: if the stroke is large, evaluate coupling combinations, and compare based on actual operating conditions.
Frequently Asked Question 2: Can the number of layers in a multi-layer wave spring be chosen arbitrarily? The number of layers should be determined based on the load requirements; common configurations range from 2 to 5 layers or more, all of which utilize well-established manufacturing processes. Suppliers can recommend an appropriate number of layers tailored to your specific needs.
Frequently Asked Question 3: Is the installation of multi-layer wave springs complex? The installation process is similar to that of single-layer springs; simply pay attention to the stacking and alignment orientation. With clear assembly guidelines and accurate drawing annotations, and by following relevant codes on-site, installation efficiency can be ensured.
When selecting elastic elements, there is no fixed rule for choosing between single-layer and multi-layer options; instead, the appropriate choice depends on the specific operating conditions. Understanding the differences between the two types, evaluating them based on actual application requirements, and leveraging the expertise of professional suppliers can help engineers quickly identify the optimal solution, ensuring that every elastic design element fulfills its intended function.
