Engineering Wisdom of Disc Spring: From DIN2093 Standard to Industrial Application Practice

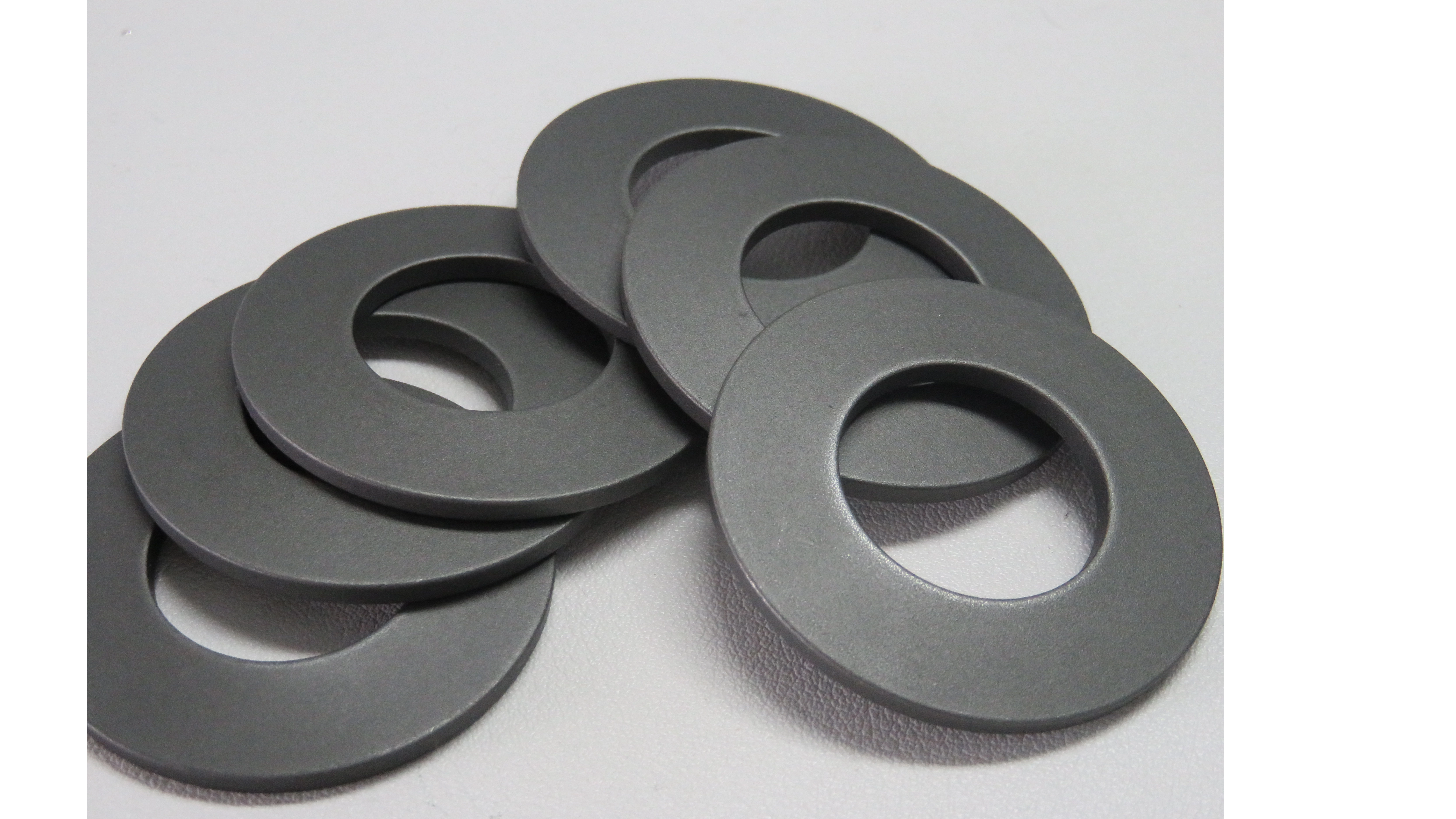

In the precision realm of mechanical engineering, disc springs utilize their distinctive conical cross-section to precisely manage immense energy within confined spaces. The DIN2093 standard disc springs manufactured by Jiangsu Sunzo are not only industrial components compliant with international standards, but also embody decades of engineering ingenuity as a resilient solution.
When we talk about disc springs, we're referring to a type of component that can:
Large load under small deformation: provides hundreds or even thousands of newtons of stable elastic force in cases of extremely limited axial space
Realize the nonlinear stiffness design: by adjusting the ratio of h₀/t, the force-displacement characteristics can be obtained as increasing, decreasing or approximately linear.
Flexible Combination to Meet Diverse Requirements: Combined Stroke for Increased Travel, Overlapping for Increased Load, Hybrid Combination for Synchronized Force and Stroke
The DIN2093 standard classifies disc springs into three categories based on the cross-sectional coefficient (h₀/t), with each category designed for specific engineering applications:
A Series (h₀/t≈0.4): Approximate linear stiffness, suitable for applications requiring stable elastic coefficients, such as bolt pre-tightening and mechanical seals.
B Series (h₀/t≈0.75): Gradually decreasing stiffness, suitable for shock absorption applications such as crane buffers and railway vehicle couplings.
C Series (h₀/t≈1.3): Demonstrates pronounced nonlinear characteristics, ideal for applications requiring significant deformation or specialized force-response curves.
Rail Transit: Train Coupling Buffer Device Absorbs Coupling Impact and Protects Car Body Structure
Construction machinery: Crane end buffer to ensure safe and smooth stop of equipment
Valve actuator: Provides reliable valve seat sealing force to achieve fault-safe position
Power Energy: Pre-tightening Mechanism of Wind Power Equipment and Compensation for Dimension Fluctuation Caused by Temperature Change
Mine Machinery: Brake Disc Spring Assembly, Meeting the High Reliability Requirements of JB/T 3812 Standard
The performance of disc spring is the result of the synergistic action of material science and precision manufacturing technology.
Material selection: 51CrV4 provides excellent fatigue performance, 60Si2MnA balances strength and cost-effectiveness, while the stainless steel series is suitable for corrosive environments.
Heat treatment process: Optimize the quenching and tempering process curve for different materials to ensure uniform microstructure and reasonable stress distribution.
Surface treatment: Various options including phosphating, Dacromet, and Jumeite, balancing the requirements of corrosion resistance, lubrication, and cost.
Participate in the formulation of standards: The company is involved in the development of international ISO disc spring standards and national standards, with a deep understanding of the technical specifications.
End-to-end industrial chain capability: From raw material control, precision molding, heat treatment to surface treatment, with complete independent manufacturing capability
Testing Center: A modern testing laboratory equipped with comprehensive testing capabilities including material analysis, dimensional measurement, load testing, and fatigue testing.
R&D Team: A professional product development team providing end-to-end technical support, from selection consultation to customized design.
Every DIN2093 leaf spring embodies Jiangsu Sunzo's profound expertise in materials, manufacturing processes, and applications. We look forward to collaborating with you to address specific engineering challenges and co-create optimal elastic solutions.
For detailed specifications, technical consultations, or product quotations, please contact our sales team. We will provide you with professional selection advice and technical documentation.
