Engineering Enabler: The Core Role and Application of Disc Spring in Modern Machinery Equipment

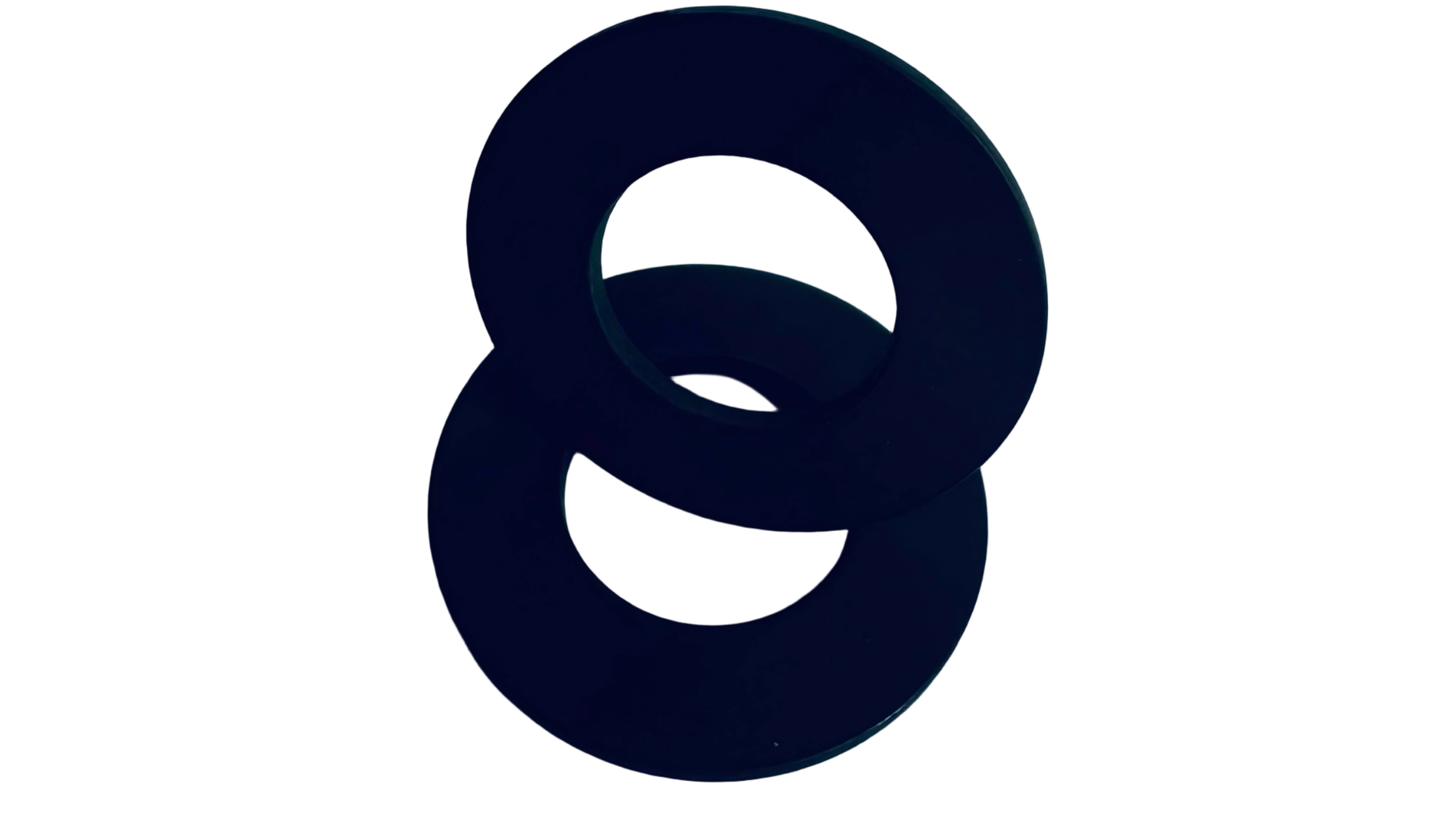

Disc springs are far more than ordinary gaskets or elastic components—they are the core engineering elements enabling efficient and reliable force transmission and motion control in modern machinery. With their unique high energy storage density and customizable stiffness characteristics, they play an irreplaceable role in critical power transmission pathways. Jiangsu Sunzo Industry will delve into the working principles and value of disc springs in various typical mechanical equipment, demonstrating how they enhance overall machine performance at the component level.
In the clutch and brake system, the disc spring is the key to ensure the precise engagement and safe separation of power.
Working principle: A set of disc springs (typically paired or stacked) provides strong and stable axial clamping force, ensuring the friction plate transmits full torque during engagement. When separation is required, overcoming this spring force enables rapid disengagement.
core value ：
High reliability: Even if the hydraulic or pneumatic actuator loses pressure, the normally closed clamping force provided by the disc spring can ensure safe braking or engagement, meeting the functional safety requirements (e.g., mine hoisting brake JB/T 3812).
Compact design: Provides hundreds or even thousands of newtons of clamping force in extremely limited space, making the gearbox and brake design more compact.
Long life: Excellent anti-relaxation and fatigue performance, ensuring the reliability of the entire transmission system under millions of cycles.
In the pursuit of precision, the function of disc springs shifts from providing high force to controlling fine movements.
CNC machine tools (such as machining centers and drilling machines): In the tool clamping mechanism of the spindle, the disc spring assembly provides a constant clamping force to ensure absolute tool locking under high-speed rotation, while allowing the tool changer to quickly and accurately overcome this force to complete tool replacement. The stability of this force and its dynamic response directly affect machining accuracy and efficiency.
Control valve and ball valve: In the valve actuator, the disc spring is used for:
1. Provide valve seat sealing force: Ensure the valve remains tightly closed without leakage.
2. Failsafe mechanism: In the event of power or voltage failure, the disc spring's spring force automatically drives the valve to a preset safe open/close position.
3. Balance and compensation: Compensate for dimensional changes caused by temperature and pressure fluctuations, maintaining stable operating torque and sealing performance.
In these scenarios, why is the disc spring typically the preferred choice?
Compared with the spiral spring, the disc spring can provide much higher load and more rigid force-displacement characteristics in the same installation space, which is more suitable for the action of pressing and releasing with high stiffness and short stroke.
The wave spring is more suitable for the static pre-tightening of the transmission system and the braking process, because the wave spring has the advantage of the wave spring in the load capacity and the anti-impact performance, and can bear the shock load and vibration.
Intrinsic features: Its modular assembly method (complementary stroke extension, load stacking) provides unparalleled design flexibility, enabling precise matching of force and stroke requirements for various equipment.
Jiangsu Sunzo Industry fully understands the pivotal role of disc springs in diverse mechanical applications. We deliver not only products compliant with the GB/T 1972 National Standard for Disc Springs, but also scenario-aware deep support.
Application-oriented design: We recommend or customize the size, material (e.g. 50CrVA for high fatigue) and combination of disc springs according to the specific working conditions (operation frequency, load spectrum, environment) of clutch, brake and valve.
System coordination analysis: We can help to analyze the interaction of disc spring and the friction plate, bearing, push rod and other components, and optimize the reliability of the whole force chain.
Failure Analysis and Prevention: With extensive experience, we assist clients in analyzing on-site failure cases, tracing the root causes to disc spring selection, installation, or manufacturing, and providing preventive improvement solutions.
Selecting the right disc spring provides your machinery with a reliable power core. With our professional technology and products, we help your equipment operate more powerfully, accurately, and durably.
