Dimension Engineering: Technical Significance and Design Logic of Six Core Parameters of Wave Spring
In high-end manufacturing sectors such as aerospace, automotive production, and precision instrumentation, wave springs serve as critical elastic components, where their performance is fundamentally determined by the rational selection of dimensional parameters. Six seemingly basic parameters—inner diameter, outer diameter, wire width, thickness, number of turns, and wave number—form the mathematical foundation of wave springs' mechanical behavior, each carrying specific engineering functions. Leveraging years of design and manufacturing expertise, Jiangsu Sunzo provides a systematic analysis of the technical significance of each parameter and its decision-making rationale in engineering applications.

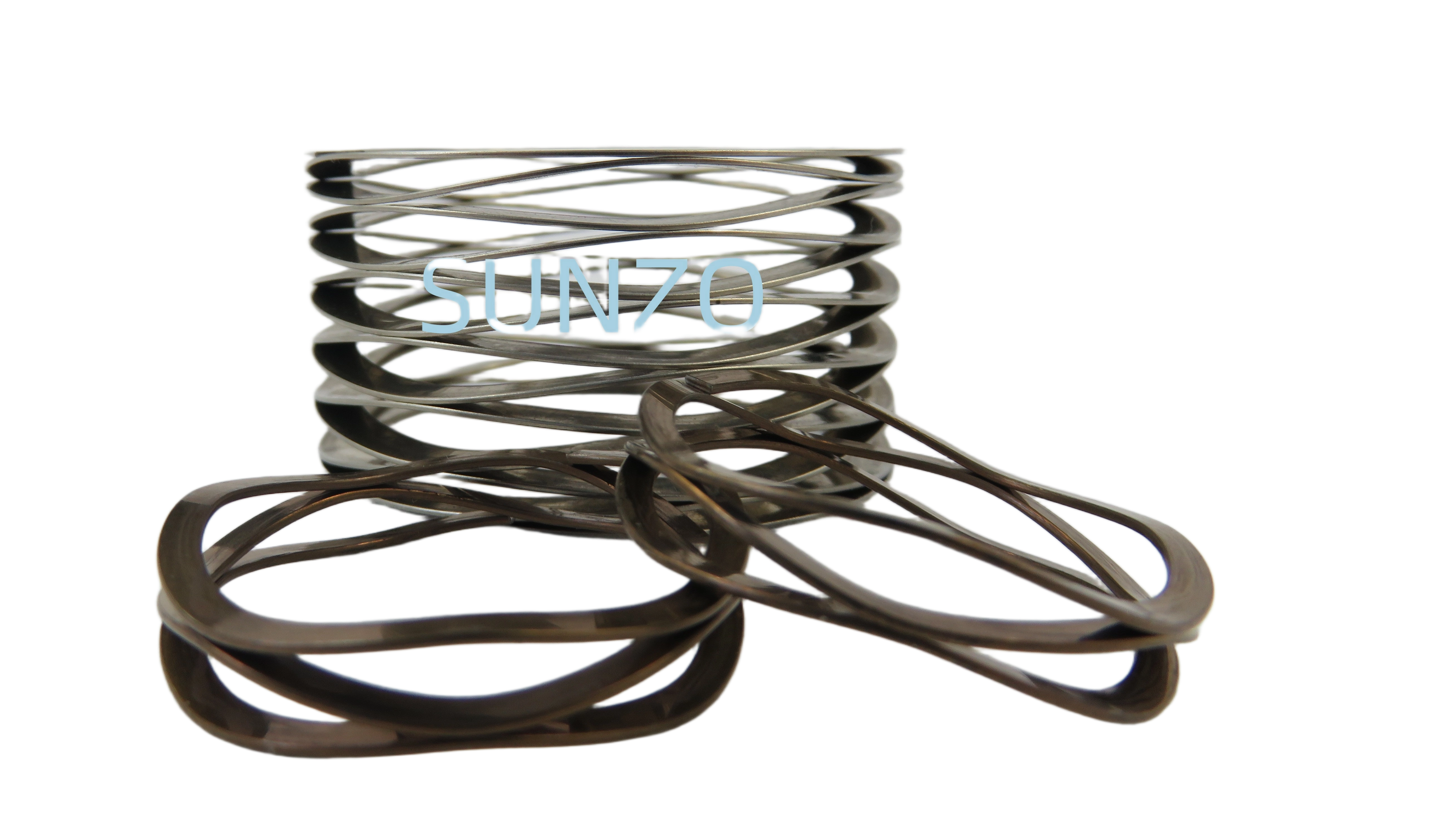

The inner diameter refers to the diameter of the circular cavity inside a helical spring, also known as the mating shaft diameter. This parameter directly determines the specifications of the shaft or rod that the spring can be mounted on.
The inner diameter is usually designed to be slightly larger than the mating shaft diameter, and the clearance is generally controlled within the range of 0.10.5mm. The specific value should be determined by considering the working speed, temperature changes, and the thermal expansion coefficient of the material.
Engineering significance: Over-tightened inner diameter may cause installation difficulties and even damage springs or shaft surfaces; over-loosened may result in radial movement, affecting alignment and force stability. For high-speed rotating applications (e.g., motor shafts, turbine machinery), inner diameter tolerance control is particularly critical, typically requiring IT6-IT7 precision.
Key points of selection: When the shaft diameter is 20mm, the inner diameter of the wave spring is usually selected as 20.220.5mm, depending on the working temperature and speed requirements.
The outer diameter, also known as the mating diameter, is the outermost circumference of the corrugated spring. It is directly related to the bore diameter of the mounting cavity and determines whether the spring can be smoothly installed into the predetermined space.
The outer diameter should be slightly smaller than the inner diameter of the installation cavity, usually with a radial clearance of 0.10.3mm to compensate for manufacturing tolerances and installation deviations.
Performance impact: The radial width of the spring is defined by the sum of its outer diameter and inner diameter (outer diameter + inner diameter) divided by 2. This width directly affects the radial stiffness of the spring and the achievable wave height. When aiming for greater elastic force in confined spaces, a balance must be struck between the upper limit of the outer diameter and the material strength.
Optimization direction: For the space extremely limited occasion (such as the smartphone camera module), the required elastic characteristics can be realized in the limited radial size by optimizing the ratio of the outer diameter and the inner diameter.
The line width is the width of the metal strip that forms the wave spring, and it is the core parameter that determines the spring section modulus.
Mechanical effect: The line width directly determines the section inertia moment. Under the same thickness, a 50% increase in line width can approximately increase the section inertia moment by 50%, thereby enhancing the bending stiffness. This relationship makes line width an effective means to regulate the load-bearing capacity of springs.
Fatigue life correlation: A wider cross-section can help reduce the working stress level, thereby extending the fatigue life. For applications with high cycle requirements (such as automotive engine valve springs), appropriately increasing the wire width is an effective way to enhance reliability.
Space trade-off: In the case of limited space, there is a coupling relationship between the line width and the wave height and wave number, which needs to be optimized. The line width of the miniature wave spring can be as small as 0.3mm, and the line width of the heavy equipment wave spring can be as large as 12mm.
The thickness is the material dimension of the wave spring in the axial direction, which is the primary parameter to determine the axial elastic force and the most sensitive variable in the design.
The axial stiffness of spring is proportional to the cube of its thickness. The stiffness increases by about 33% when the thickness increases by 10%. This nonlinear relationship makes the thickness the most direct and effective parameter to control the force.
Deformation trade-off: thinner springs can obtain greater deformation under the same load, which is suitable for cushioning applications requiring large stroke (e.g. landing gear cushioning system); thicker springs provide greater supporting force, which is suitable for high stiffness pre-tightening applications (e.g. bearing pre-tightening).
Process limits: Thickness selection is constrained by material processability and heat treatment deformation control capability. For ultra-thin specifications (<0.2mm), material rolling accuracy and forming process must be considered, while for ultra-thick specifications (>5mm), forming capacity and heat treatment uniformity require evaluation.
The number of turns refers to the total number of complete loops in a wave spring. For multi-layer wave springs, it is necessary to distinguish between the total number of turns and the effective number of turns.
The relationship between stiffness and deformation: In the parallel (stacked) structure, the total stiffness increases proportionally with the number of rings; in the series (opposite) structure, the total deformation increases while the stiffness decreases correspondingly. This characteristic allows for flexible adjustment of the number of rings to meet different load-displacement requirements.
Stability considerations: Springs with excessive number of turns may exhibit lateral instability during compression. It is recommended to adhere to the empirical criterion of a high aspect ratio (free height/outer diameter) ≤0.8 in design, and guide structures may be added when necessary.
The concept of effective coil number: For the spring with support coil (e.g. flat end pair), the effective coil number actually participating in deformation equals the total coil number minus the support coil number. This distinction has a direct impact on force calculation.
The wave number is the number of complete waveforms of the spring in the circumferential direction, and it is the key parameter of the uniformity of the influence distribution.
Uniformity effect: The more wave numbers, the more uniform the force distribution of the spring in the circumferential direction. For applications sensitive to circumferential force uniformity (such as mechanical seals, bearing pre-tightening), 6-wave, 8-wave, or more wave numbers are typically selected.
The stiffness effect: The increase of wave number will increase the stiffness of the spring slightly, because more wave peaks and valleys participate in the bending deformation under the same deformation, and the deformation of the unit wave shape is reduced.
The wave number is limited by the spring circumference and the line width. If the wave number is too high, the wave crest spacing may be too small, which will affect the forming quality and the stress distribution.
The design of wave spring is not a simple combination of isolated parameters, but a multi-parameter coupling system engineering. There are complex interactions among the parameters:
parameter | Main impact | relevant parameter | design trade-off |
bore size | Installation coordination | Outer diameter, shaft diameter | Gap Control and Centering Accuracy |
external diameter | space adaptation | inner diameter, cavity dimensions | Space Utilization and Radial Stiffness |
line width | carrying capacity | thickness, wavenumber | Strength Demand and Space Limitation |
thickness | axial rigidity | line width, material properties | Rigidity Requirement and Deformation Capacity |
number of turns | total stiffness/stroke | Number of layers, number of waves | Trip Demand and Stability |
wave number | uniformity/rigidity | Perimeter, Line Width | Homogeneity and Formability |
At Jiangsu Sunzo , we implement systematic optimization of dimensional parameters throughout every stage of product development, ensuring that design theories are reliably translated into product performance.
The parameterized design platform establishes a design model with six parameters and their coupling relationships, which can quickly respond to customer customization needs, provide optimal parameter combination suggestions, and output complete dimensional chain analysis reports.
Precision manufacturing capability: Utilizing CNC winding and precision stamping technologies, strict process control is implemented for critical dimensions. For standard products, inner and outer diameter tolerances can be controlled within ±0.05mm, with thickness tolerance maintained at ±0.01mm, meeting high-precision application requirements.
Dimensional performance verification system: every batch of products are sampled for dimensional retest and force value test, the database of the corresponding relationship between dimensional parameters and measured performance is established, and the design model and process parameters are continuously optimized.
Technical Support Services: For complex applications, we provide end-to-end technical support covering parameter recommendations, sample testing, and batch production, assisting clients in establishing comprehensive dimensional specifications and acceptance criteria.
Size is the language of performance, and precise dimensional control is the prerequisite for reliable spring operation. We are committed to translating the engineering logic behind each dimensional parameter into reliable solutions, enabling wave springs to deliver their intended functional value in your equipment.
