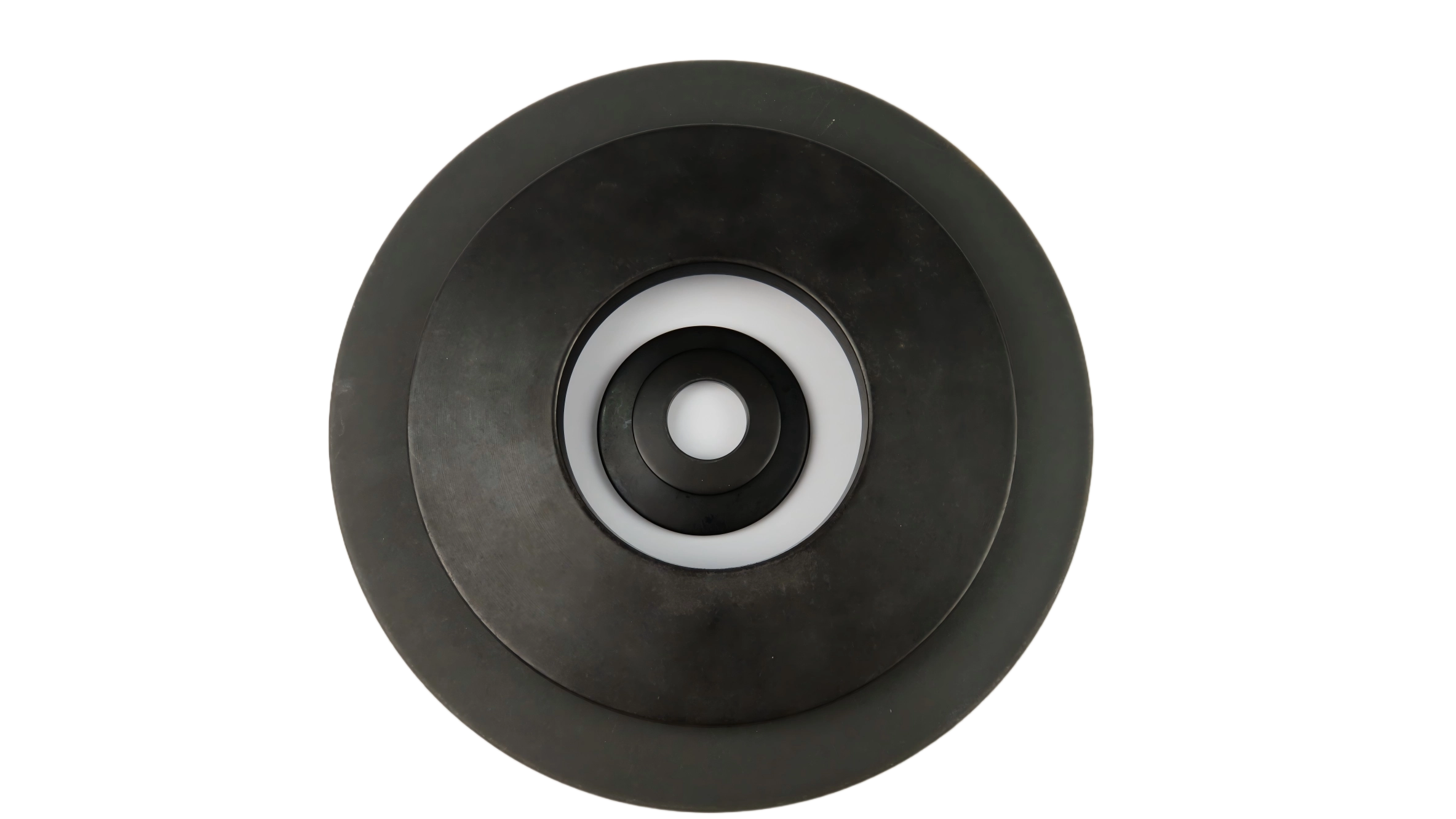

Jiangsu Sunzo Customized 51CrV4 Disc Spring: A premium elastic solution designed for precision machinery

Jiangsu Sunzo Customized 51CrV4 Disc Spring: A premium elastic solution designed for precision machinery

Jiangsu Sunzo Spring Elastic Technology Co., Ltd., established in 2006, has specialized in research and innovation within the elastic technology sector. With its production base in Sihong, Jiangsu Province and R&D/sales centers in Nanjing, the company operates a comprehensive industrial chain spanning raw materials to specialized equipment and product manufacturing, establishing itself as a trusted partner for industry leaders. 51CrV4, a high-quality alloy spring steel renowned for its exceptional strength, toughness, fatigue resistance, and temperature stability, has become the preferred core material for premium precision disc springs. Jiangsu Sunzo's customized 51CrV4 disc springs are developed through deep market analysis of advanced precision machinery applications, leveraging proprietary manufacturing processes and proven production systems to deliver high-performance, reliable solutions tailored for precision engineering. These springs utilize precisely formulated 51CrV4 alloys with stringent chemical composition controls: carbon (0.47–0.55%), manganese (0.70–1.10%), chromium (0.90–1.20%), and vanadium (0.10–0.20%), while maintaining sulfur and phosphorus impurities below 0.03%. Silicon content is optimally incorporated to enhance matrix structure. The scientific alloy composition combined with precise heat treatment ensures tensile strengths of 1200–1500 MPa and yield strengths of 1000–1250 MPa, enabling robust load-bearing performance, rapid elastic recovery, and exceptional deformation consistency. After 10⁵ cycles of alternating fatigue testing, the product's permanent deformation remains below 0.05%, significantly exceeding industry standards. It delivers continuous, precise axial preloading control for precision equipment, ensuring stable and long-lasting high-speed operation with extended service life.

Jiangsu Sunzo's customized 51CrV4 disc spring is designed for diverse applications ranging from low to medium-high loads, with an effective load range of 0.5–20 kN, offering broad compatibility and enhanced operational adaptability. In precision mechanical systems—including CNC machine spindles, coordinate measuring machines (CMMs), optical inspection equipment, and precision transmission systems—extreme demands are placed on vibration suppression, operational accuracy, and stability; even minor vibrations or deformation deviations can significantly impact manufacturing and inspection precision. Leveraging the inherent damping properties of alloy materials and optimized structural design, this disc spring achieves a stable damping coefficient of 0.30–0.40, delivering exceptional shock absorption and vibration control capabilities that effectively mitigate resonance and micro-vibrations during operation, thereby markedly improving machining accuracy, inspection precision, and operational stability. Its classic conical geometry combined with advanced forming techniques enables precise linear control of load-deflection relationships. Customizable specifications include thicknesses from 0.5 mm to 5 mm and outer diameters from 10 mm to 150 mm, with spring stiffness adjustable precisely within the 10–50 N/mm range, fully meeting tailored elastic parameter requirements across various precision machinery systems. The compact, modular design allows seamless integration into compact mechanical components, providing essential elastic support for the miniaturization, weight reduction, and high-precision upgrades of advanced equipment.

Under complex industrial conditions, temperature fluctuations, minor corrosion, and high-frequency friction can all degrade the performance of elastic components. Equipment durability and operational reliability are fundamental to industrial production. Jiangsu Sunzo specializes in elastic technology, developing customized surface treatment processes tailored to the properties of 51CrV4 alloy to comprehensively enhance wear resistance, corrosion resistance, high-temperature tolerance, and aging resistance for demanding industrial applications. The phosphating process strictly adheres to ISO 10276 international standards, forming a dense 5–15 μm anti-corrosion phosphate coating on spring surfaces suitable for conventional indoor environments, effectively preventing air oxidation and rusting while extending product service life. The blackening treatment complies with MIL-DTL-13924 military standards, creating a uniform protective oxide layer that significantly improves surface wear resistance and anti-adhesion performance while enhancing aesthetic appeal. For high-speed transmission, high-frequency operations, and precision lubrication requirements, the company offers specialized oil immersion treatment services, reducing the spring's friction coefficient by over 35% compared to base materials—effectively minimizing friction losses and energy waste during high-frequency operation, lowering equipment noise levels, and optimizing transmission efficiency and operational smoothness in precision mechanical systems. Compared to conventional carbon steel springs, 51CrV4 exhibits superior toughness and fatigue resistance, making it suitable for both ambient and medium-temperature environments with slower performance degradation and enhanced operational adaptability.

Jiangsu Sunzo's customized 51CrV4 disc springs support both standard DIN 2092 size specifications and comprehensive customization options, fully meeting the demands of standardized mass production as well as specialized equipment applications. For non-standard dimensions, unique parameters, or specific operating conditions, the company enables precise manufacturing with core dimensional tolerances strictly controlled within ±0.02 mm, ensuring seamless compatibility between products and customer equipment. A rigorous quality control system covers every stage—from raw material inspection to final product testing—with each batch undergoing rigorous load-deflection curve validation and parameter tolerance checks within ±3%. Hardness testing confirms stable values between 45–52 HRC, fully complying with stringent quality standards for high-end precision machinery and automated systems. Thanks to their exceptional performance, reliable operational adaptability, and consistent quality assurance, these springs are widely used in servo motor brakes, precision pressure tools, semiconductor manufacturing equipment, advanced automation lines, and precision measurement instruments. In leading domestic semiconductor and precision equipment manufacturers, they provide essential elastic preload and effective shock absorption, significantly enhancing operational accuracy, production efficiency, and product yield. Their superior quality has earned widespread recognition and acclaim from industry clients.
