Jiangsu Sunzo Disc Spring Installation Guide: A Practical Demonstration of High-End Customized Hydraulic System Integration Technology Benchmarks

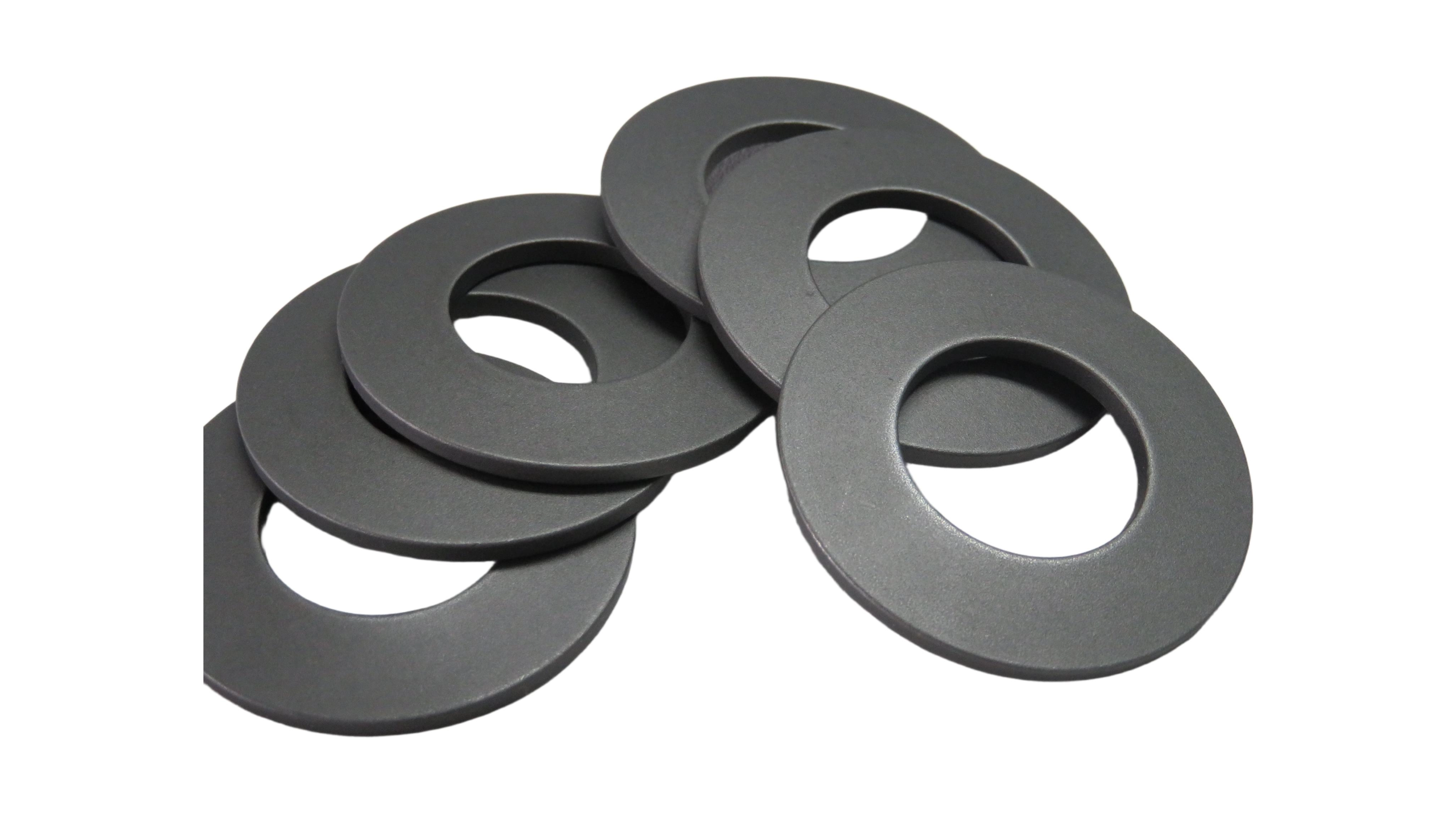

Disc springs, as critical elastic components in industrial hydraulic systems, have their installation quality directly impacting the stability, service life, and load response accuracy of the entire system. Jiangsu Sunzo, a leading domestic provider of high-end customized disc spring solutions, has developed standardized installation requirements tailored for industrial hydraulic system integration scenarios. These requirements are designed from the custom development phase to address specific installation needs across various applications, enabling seamless integration of disc spring assemblies for long-term stable operation by both integrators and end-users. This article focuses on high-end customization solutions, systematically summarizing the installation expertise validated by Sunzo's technical team through multiple projects, covering the entire process from initial preparation to subsequent maintenance, and providing actionable technical guidance for hydraulic system integration projects.
Unlike standard batch-produced disc springs that merely meet general specification requirements, high-end hydraulic systems impose stricter demands on installation accuracy, preloading consistency, and load stability of disc springs. Jiangsu Sunzo has specialized in customized disc spring solutions for years, serving clients across construction machinery, metallurgical equipment, and energy hydraulic systems who generally require tailored component configurations: for instance, large shield machine hydraulic buffer systems demand combinations of oversized disc springs; nuclear power plant safety hydraulic systems necessitate custom materials resistant to radiation and high temperatures; while hydraulic locking systems for aerial work platforms require disc spring assemblies with precise load tolerances.
To address these customized requirements, SUNZO has developed comprehensive technical specifications covering the entire process from design to installation. Each customized project comes with dedicated installation guidelines, with installation procedures tailored to the specific parameters of the customer's hydraulic system, ensuring that the disc spring's performance fully meets design specifications. Data shows that projects implemented according to SUNZO's customized installation standards exhibit an average disc spring service life exceeding 40% longer than conventional installations and a 62% reduction in system failure rates, demonstrating the value of end-to-end control throughout the customized solution lifecycle.
For customized disc springs, Jiangsu Sunzo requires the installation team to complete three-tier verification before formal commencement of work, thereby preventing performance losses caused by installation errors at the source.
First, compare the product certification provided by SUNZO with the load deflection curve data (compliant with ISO 16148 international standards) to verify each core parameter of the disc springs—including free height H0, thickness t, outer diameter D, and inner diameter d—ensuring all parameters meet hydraulic system design requirements. For modular disc spring assemblies, verify the stacking sequence and individual spring specifications of each set to prevent misinstallation that could cause overall load characteristics from deviating from designed values.
Specifically regarding pre-compression travel matching, SUNZO technical specifications require that disc springs in conventional hydraulic systems maintain a pre-compression deflection of 15–25% to eliminate play during pressure cycling and prevent spring plate displacement caused by impact loads. For hydraulic locking systems, the pre-compression deflection must be increased to 25–30% to ensure no displacement occurs under locked conditions, thereby enhancing system safety.
Prior to installation, all mating contact surfaces must undergo thorough cleaning to remove impurities such as oil stains, metal debris, and rust inhibitors; these impurities can alter the friction characteristics between the disc springs, leading to load deviation during long-term operation. SUNZO recommends using isopropanol with a purity of 99% or higher for wiping and cleaning. After cleaning is completed, the roughness of the contact surfaces must be inspected; the roughness of the support seat's contact surface shall not exceed Ra 1.6. If the roughness exceeds this limit, grinding treatment should be performed to prevent localized stress concentration that could cause premature fatigue of the spring leafs.
Custom-made disc springs require specialized installation tools; direct impact with metal hammers on the spring surface is prohibited to prevent stress cracking caused by damage. SUNZO recommends using a hydraulic press for pre-press assembly, with custom guide sleeves tailored to different spring dimensions to ensure axial alignment during assembly. For large-scale combined disc spring assemblies, apply pre-pressure uniformly and gradually using a torque wrench to avoid unilateral force application that could cause misalignment.
Axial alignment accuracy directly affects the force distribution uniformity of disc springs. Jiangsu Sunzo installation specifications specify clear requirements for alignment precision: the fit clearance between the guide post and the inner hole of the disc spring must be maintained within 0.1–0.3 mm; excessive clearance may cause spring leaf deformation, while insufficient clearance can lead to installation difficulties or thermal expansion-induced jamming. For disc spring assemblies with external diameter positioning, the clearance between the spring outer surface and the mounting cavity must also fall within this range.
Disc spring assemblies with different stacking configurations require varying alignment specifications:
· Concentric stacking: All disc springs have their convex surfaces oriented uniformly. This arrangement provides significant combined deflection; during installation, ensure each piece's center aligns with the guide pillars, and perform coaxiality checks every five units to prevent cumulative errors.
· For opposing stacking: The convex surfaces of adjacent disc springs face each other. This configuration offers high rigidity and excellent precision; during installation, ensure that the contact surfaces of each pair of disc springs are fully aligned to prevent misalignment.
· Composite stacking: Large units use opposite stacking, while small units use same-direction stacking. During installation, follow the stacking diagram provided by SUNZO strictly and do not arbitrarily change the stacking sequence.
During the pre-pressure application phase, SUNZO requires a stepwise loading approach: first, apply 50% of the design pre-pressure, maintain this pressure for 30 seconds, and inspect for any jamming or misalignment issues; after unloading, recheck alignment. Next, apply 80% of the design pre-pressure and perform another pressure maintenance inspection. Finally, apply full design pre-pressure, measure the overall height, and record the total post-pre-pressure height as a reference value for subsequent maintenance inspections. For large-sized custom disc spring assemblies, SUNZO provides a FEA-based stress distribution report; during installation, refer to this report to verify stress distribution across all components and prevent excessive local stresses.
Jiangsu Sunzo SUNZO provides customized disc springs tailored for various application scenarios, along with corresponding installation and adjustment solutions to meet the specific requirements of different operating conditions.
If the system operates at temperatures exceeding 120°C for extended periods, SUNZO recommends replacing conventional 65Mn spring steel with Inconel X-750 nickel-based alloy. During installation, a thermal expansion gap must be reserved; the expansion amount should be calculated based on the maximum operating temperature, and an appropriate axial clearance should be provided to prevent excessive pre-pressure buildup due to temperature rise, which could lead to spring overload. For instance, when the operating temperature increases from 25°C to 200°C, the outer diameter of an Inconel disc spring expands by approximately 0.15%, requiring corresponding adjustment of the installation chamber clearance.
For high-dynamic hydraulic systems subjected to frequent operation—such as shield machine oil cylinder buffer systems and press hydraulic systems—SUNZO subjects disc springs to shot blasting treatment for reinforcement. During installation, a qualified solid lubricant must be applied to the contact surfaces of adjacent disc springs to reduce friction and wear and prevent adhesion. SUNZO's technical data indicate that proper lubrication application can extend the service life of disc springs under dynamic loads by 28%.
In hydraulic systems used in marine engineering and chemical industries, SUNZO's custom disc springs undergo surface coating treatment. During installation, sharp tools must be avoided to prevent scratching the coating; any damage should be promptly repaired to prevent corrosion. After installation, sealing measures must be implemented to prevent corrosive substances from entering the spring cavity.
For large hydraulic systems handling loads exceeding thousands of tons, SUNZO employs multiple sets of disc springs arranged in parallel. During installation, it is essential to ensure uniform pre-pressure across all parallel groups, with deviations controlled within 2%, to prevent failure due to overload in any spring group. Force sensors are used throughout the installation process to individually adjust the pre-pressure, ensuring uniform force distribution across all groups.
Jiangsu Sunzo has established a three-tier maintenance inspection protocol for custom disc springs, enabling users to promptly detect performance degradation and reduce the risk of sudden failures.
Daily inspect the area surrounding the spring chamber for hydraulic oil leaks, as leaks can cause pressure fluctuations within the spring chamber and lead to corrosion of the spring surface by oil contaminants. Additionally, examine the hydraulic system for any abnormal noises during operation; such noises often indicate potential misalignment or fracture of the disc spring. Upon detection of abnormalities, immediately halt the machine for inspection.
quarterly use an ultrasonic thickness gauge to measure the total height after pre-compression and compare it with the baseline value recorded during installation; if deflection loss exceeds 5%, the spring has undergone permanent deformation and requires complete replacement to prevent performance failure that would compromise system requirements. For parallel-scheduled spring assemblies, inspect each group individually and replace components showing excessive deformation.
Each year, a sample spring is selected and subjected to load-deflection curve testing according to DIN 2092 standards. The results are compared with the factory specifications to verify whether the elastic modulus variation falls within permissible limits. If performance degradation exceeds design allowances, all disc springs must be replaced entirely. For critical systems, SUNZO provides annual on-site inspection services conducted by technical engineers to complete comprehensive performance verification.
As a leading domestic provider of customized high-end disc spring solutions, Jiangsu Sunzo SUNZO offers comprehensive technical support spanning from design to installation for every project: For complex projects, we conduct finite element (FEA) simulation analyses to predict stress distributions during installation and optimize manufacturing processes; for key projects, we provide on-site technical assistance with guidance from experienced engineers to address any installation challenges; additionally, we maintain a 24/7 engineering hotline to promptly resolve technical inquiries related to installation and maintenance.
Disc spring assemblies manufactured in compliance with SUNZO's customized installation specifications can withstand over 1 million cycles in typical industrial hydraulic applications, exceeding industry averages. This significantly reduces maintenance costs and enhances system stability. Whether for small-scale hydraulic systems or large-scale engineering projects, Jiangsu Sunzo provides tailored solutions and installation support to meet diverse operational requirements.
