In modern hydraulic seal systems, the performance of elastic components directly determines the stability, service life and operational safety of the entire equipment. For applications requiring consistent axial preload, wear resistance and corrosion protection under harsh working conditions, a high-precision mechanical zinc-plated waved spring stands as an irreplaceable core solution. As a leading manufacturer based in Jiangsu, China, SUNZO (Jiangsu Sunzo) combines decades of spring manufacturing expertise with advanced surface treatment technology to deliver custom waved spring solutions that meet the most stringent industrial requirements, helping global hydraulic equipment manufacturers improve system reliability and reduce long-term maintenance costs.

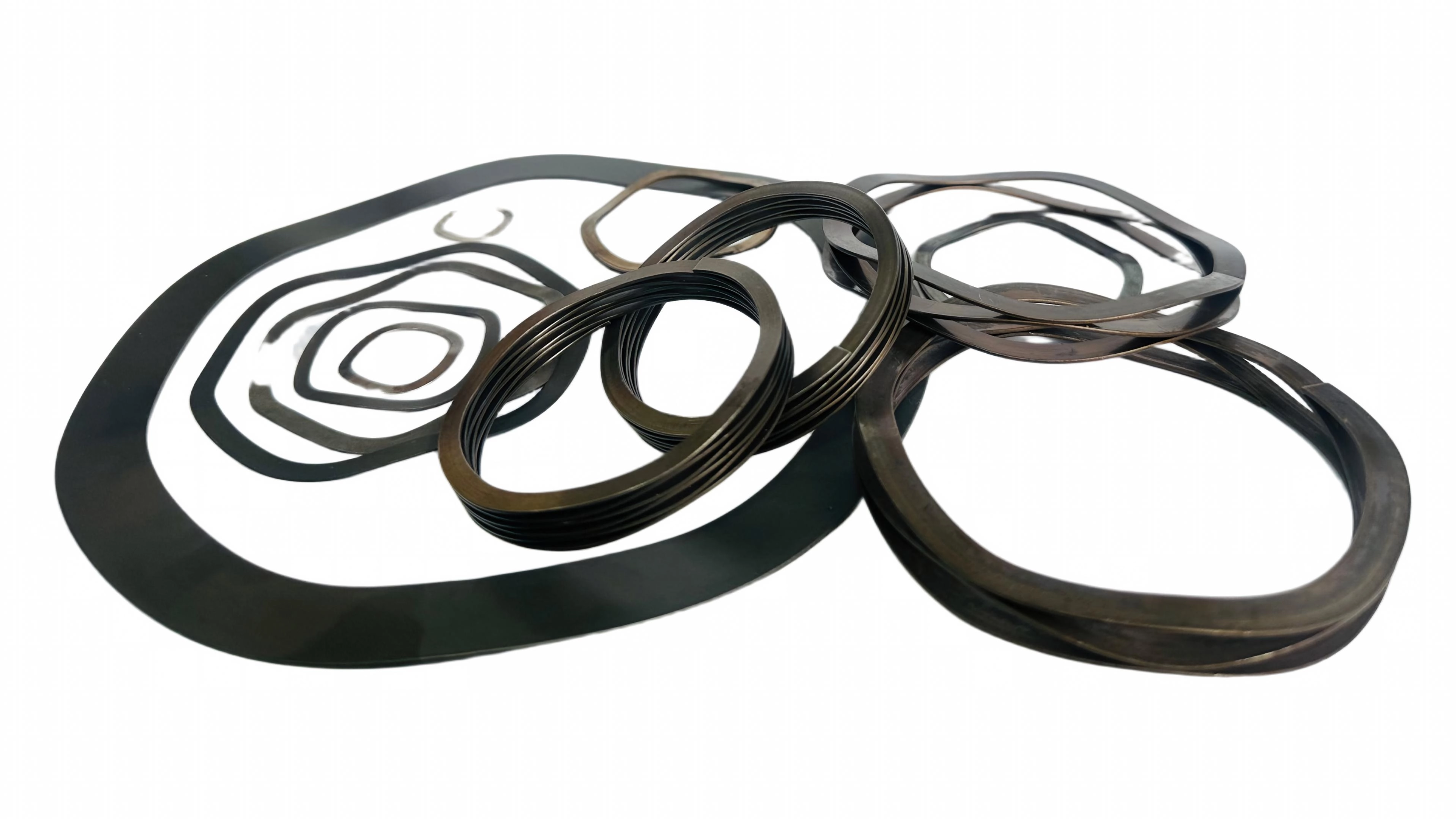

Also known as wave springs, mechanical zinc-plated waved springs are precision-engineered thin-walled metal circular elastic components with multiple alternating peaks and valleys. Unlike traditional coiled springs, waved springs provide the same elastic force within 50% less axial installation space, making them perfectly suited for compact hydraulic seal assemblies where space is limited. The core advantage of SUNZO's waved spring lies in the combination of high-performance material selection and advanced mechanical zinc plating surface treatment, which delivers unmatched performance in hydraulic environments:
· Superior mechanical properties: Produced from high-quality spring steel and alloy materials, our waved springs offer tensile strength up to 1,200 MPa and can withstand dynamic loads up to 400G, maintaining stable elastic force even under frequent pressure changes in hydraulic systems. This consistent performance prevents seal leakage caused by spring fatigue, ensuring long-term seal integrity.
· Enhanced corrosion resistance: Through our advanced mechanical zinc plating electroplating process, we create a uniform 8-12μm thick zinc coating that tightly adheres to the spring surface. This coating reduces friction by 35% compared to untreated springs and achieves over 800 hours of neutral salt spray resistance in accordance with ASTM B117 standards, extending the service life of the spring by 200% compared to uncoated alternatives. In hydraulic systems that come into contact with water, chemicals or humid environments, this corrosion protection is critical to avoiding premature spring failure and system downtime.
· Optimized space utilization: The unique wave design allows SUNZO waved springs to deliver the required spring rate in a much smaller axial dimension compared to traditional coil springs. This enables hydraulic component designers to create more compact seal assemblies without compromising on elastic performance, helping reduce the overall weight and size of hydraulic equipment.
As a professional waved spring manufacturer with fully domestic production capabilities in Jiangsu Province, SUNZO understands that different hydraulic applications have vastly different requirements for spring material, size, performance and surface treatment. That's why we offer both standard off-the-shelf products and fully custom-designed solutions to match your exact application needs. Our standard product range covers single-layer closed waved springs with diameters from 10mm to 300mm, and we can quickly adapt our production to meet custom size and performance requirements.
We provide diversified material selection tailored to different working conditions in hydraulic systems:
1. 1074 High-Carbon Steel: A cost-effective option for general industrial hydraulic applications, offering good elasticity and fatigue resistance for normal temperature and pressure conditions.
2. 50CrVA Alloy Steel: Ideal for high-temperature hydraulic environments, with an operating temperature range up to 350°C and excellent fatigue resistance and creep resistance, maintaining stable performance under continuous cyclic loading.
3. SUS302 Stainless Steel: Designed for low-temperature hydraulic applications, with a working temperature range from -200°C to 200°C, providing excellent corrosion resistance and toughness in extremely cold environments.
4. Inconel X-750: A premium alloy option for high-pressure, high-temperature hydraulic systems, offering outstanding creep resistance and corrosion resistance for the most demanding offshore and industrial applications.
Beyond material selection, SUNZO's custom service covers all aspects of spring design and production:
· Custom diameter, wave height, number of waves and free length to match your seal cavity dimensions
· Adjustable spring rate and load-deflection characteristics to meet your specific preload requirements
· Optional additional surface treatments (passivation, black oxide, phosphating) to meet special corrosion resistance needs
· WS series continuous winding interleaved waved springs or WSS series with flat end rings for specific installation conditions
For applications where standard WS series waved springs are not suitable (such as when both end faces of the installation space have holes that would cause the wave peaks of WS springs to sink in), our WSS series with flat end rings provides more uniform elastic force distribution, perfectly solving this installation challenge. This flexible customization capability allows SUNZO to meet the unique requirements of any hydraulic seal system, from small batch prototype development to mass production.
At SUNZO Jiangsu Sunzo, quality is the core of everything we do. Every mechanical zinc-plated waved spring we produce undergoes rigorous quality testing before delivery, complying with international ISO 9001 and SAE J2329 standards to ensure consistent performance and dimensional accuracy:
· Load-deflection curve validation with a tolerance control of ±3%, ensuring the spring delivers exactly the elastic force required for your seal preload
· High-precision dimensional accuracy checks with tolerances controlled within ±0.02mm, guaranteeing perfect fit in your seal assembly
· Zinc coating adhesion testing to prevent peeling or cracking under dynamic loading conditions
· 100% visual inspection to detect any surface defects that could affect performance or corrosion resistance
Our quality management system covers every step from raw material incoming inspection to finished product outbound testing. We source raw materials from certified domestic and international steel mills, and each batch of material comes with a complete material certificate to ensure traceability. This end-to-end quality control process ensures that every SUNZO waved spring meets or exceeds customer performance expectations, reducing your procurement risk and downstream assembly costs.
Our mechanical zinc-plated waved springs are widely used in various critical hydraulic seal applications across multiple industries:
· Valve Actuators: Maintain consistent axial preload on valve seals, preventing fluid leakage and ensuring reliable valve operation over millions of cycles.
· Piston Assemblies: Provide uniform contact pressure between the piston seal and cylinder wall, compensating for seal wear and extending seal service life.
· Hydraulic Cylinders: Compact design fits perfectly in limited space, maintaining stable sealing performance under varying pressure and temperature conditions.
· Gear Pumps: Preload side plates to reduce internal leakage and improve volumetric efficiency, enhancing overall pump performance and energy efficiency.
· Offshore Oil & Gas Equipment: Zinc plating provides excellent corrosion resistance in saltwater environments, ensuring long-term reliable operation in harsh offshore conditions.
· Mobile Hydraulics (Construction & Agriculture Machinery): Withstand vibration and dynamic loading, maintaining seal integrity in mobile equipment operating in rugged environments.
· Industrial Hydraulic Machinery: Consistent performance and long service life reduce maintenance downtime and improve overall equipment productivity.
SUNZO Jiangsu Sunzo is a professional waved spring manufacturer located in Jiangsu Province, China's major manufacturing hub, with advanced production equipment, experienced engineering team and complete testing capabilities. We focus on providing high-quality custom elastic components for hydraulic seal manufacturers and hydraulic equipment producers around the world, with a customer-centric approach that sets us apart from competitors:
· Local manufacturing with global quality standards: All production is completed in our Jiangsu factory, with strict adherence to international quality standards, delivering high-quality products at competitive prices.
· Fast response for custom requirements: Our engineering team can quickly review your drawings and requirements, provide professional design suggestions and deliver fast prototype and production lead times.
· Flexible order quantities: We accommodate both small batch custom orders and large volume mass production orders, matching the needs of different customers.
· Continuous technical support: Our engineers provide technical support from the initial design stage through mass production, helping you select the optimal spring solution for your application.
· Compliant production and export capabilities: We have rich experience exporting to North America, Europe, Southeast Asia and other regions, with complete export documentation and compliance with international trade requirements.
Whether you are looking for standard off-the-shelf mechanical zinc-plated waved springs or require a fully custom solution for your unique hydraulic seal application, SUNZO Jiangsu Sunzo has the capability and expertise to meet your requirements. We are committed to building long-term partnerships with customers based on quality, reliability and mutual benefit, helping you improve product performance and gain a competitive advantage in your market.
If you have a requirement for mechanical zinc-plated waved springs for hydraulic seal systems, contact SUNZO Jiangsu Sunzo today to discuss your application needs. Our engineering team will work with you to develop the optimal solution that meets your performance, size and budget requirements. We provide free technical consultation and quotation services, and can quickly deliver prototype samples for your testing and validation.
