Premium Curved Disc Springs: High-Performance Elastic Solutions by Jiangsu Sunzo Spring Elasticity Technology Co., Ltd.
In modern precision engineering and mechanical assembly, managing micro-vibrations, compensating for axial end play, and maintaining stable, continuous tension within highly restricted spaces are critical to system reliability. Standard helical springs often fail to deliver the ideal balance of a compact solid height and a linear force deflection profile under light to medium loads.
As a premier innovator in specialized elastic components, Jiangsu Sunzo Spring Elasticity Technology Co., Ltd. (SUNZO) engineers advanced curved disc springs—also widely recognized across global industrial procurement channels as curved spring washers or crescent washers. By integrating state-of-the-art material sciences with precise geometric profiles, SUNZO delivers premium elastic solutions tailored to the rigorous demands of global OEMs, Tier-1 industrial suppliers, and heavy equipment manufacturers.

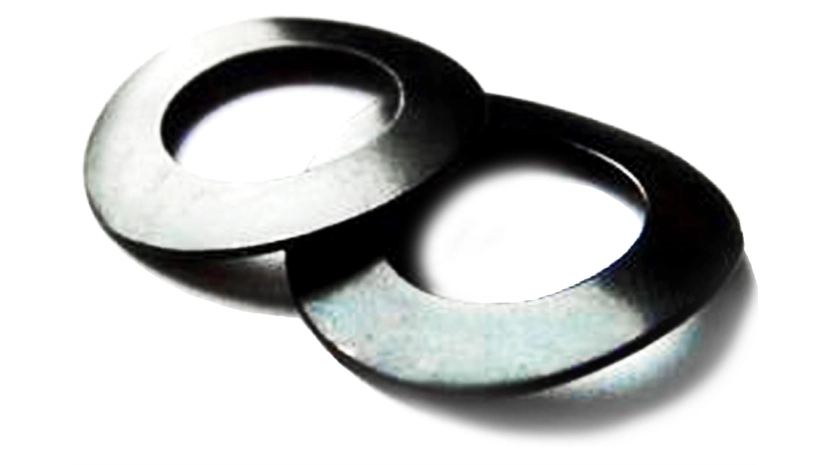

Jiangsu Sunzo's curved disc springs are geometrically characterized by a uniform, cylindrically curved cross-section. This unique design allows them to bridge the operational gap where standard Belleville washers or heavy-duty wave springs are overly rigid or lack sufficient deflection capabilities.
Unlike conventional conical washers, our curved disc springs exhibit a remarkably uniform and nearly linear spring rate throughout their functional range, particularly between 10% and 80% of their total available deflection. This predictable behavior ensures consistent pressure distribution without sudden load spikes, safeguarding delicate mating components from stress concentrations.
By optimizing the internal microstructural stresses during our specialized heat-treatment phases, Sunzo's components mitigate the risk of premature material fatigue. The dual-point contact profile expands smoothly under operational loads, minimizing friction and wear, which inherently yields an extended operating life cycle even in continuous-cycling dynamic applications.
Every single curved disc spring manufactured at our facilities undergoes a rigorous pre-setting process. This ensures that the component undergoes its initial plastic deformation under controlled conditions so that it will not significantly relax or lose its free height over decades of deployment, securing long-term tension maintenance in critical joints.
With an ultra-low solid height profile, these springs deliver optimal axial force while utilizing only a fraction of the physical space required by traditional compression springs. They act as exceptional space-savers in complex mechanical stack-ups.
Operating across varied environmental conditions requires specific metallurgical formulations. Jiangsu Sunzo offers a diverse portfolio of premium materials to ensure that our curved disc springs excel in temperature tolerance, corrosion resistance, and high-tensile endurance.
High-Carbon Spring Steels (e.g., SAE-C1074 / 65Mn): The industry standard for general-purpose mechanical assemblies requiring optimal elasticity, high yield strength, and exceptional cost-effectiveness under standard operating conditions.
Chrome-Vanadium Alloy Steels (e.g., 51CrV4 / SAE 6150): Engineered for high-stress dynamic environments, providing outstanding toughness, superior fatigue strength, and excellent thermal stability.
Austenitic & Martensitic Stainless Steels (e.g., SUS301, SUS302, SUS304, SUS316): Selected specifically for mid-to-high corrosion resistance requirements. SUS316 is particularly favored in chemical processing environments due to its excellent resistance to pitting and oxidation.
Precipitation-Hardening Stainless Steel (17-7PH / UNS S17700): Offers an elite combination of ultra-high strength, fatigue resistance, and excellent corrosion resistance at elevated temperatures up to 315°C (600°F).
Superalloys (Inconel 718, Inconel X-750, Nimonic 90): Reserved for extreme, ultra-high-temperature environments (up to 700°C) and highly corrosive chemical mediums. These materials resist creep and stress relaxation under the most severe industrial scenarios.
To facilitate seamless integration into your existing CAD designs and assembly lines, Jiangsu Sunzo maintains rigorous dimensional tolerances adhering to international manufacturing benchmarks. We provide both standardized metrics and comprehensive custom-tailored dimensions:
Parameter Specification | Standard Range Capability | Tolerance Criteria |
Outside Diameter (OD) | 3.00 mm – 150.00 mm | ± 0.05 mm to ± 0.25 mm |
Inside Diameter (ID) | 1.50 mm – 120.00 mm | ± 0.03 mm to ± 0.20 mm |
Material Thickness (t) | 0.10 mm – 6.00 mm | Commercial Standard / Precision |
Free Height (H0) | 0.50 mm – 25.00 mm | ± 0.10 mm to ± 0.40 mm |
Load Capacity Range | From fractions of a Newton to over 5,000 N | Within ± 10% of theoretical calculated values |
Note: For specialized geometric configurations, our engineering center provides full blueprinting, non-linear Finite Element Analysis (FEA), and rapid physical prototyping with no rigid Minimum Order Quantity (MOQ) constraints.
Thanks to their continuous tensioning properties and light-to-medium force characteristics, Sunzo's curved disc springs are deployed across a vast spectrum of high-end commercial industries:
In industrial control valves, ball valves, and pressure regulators, these springs are installed within the packing glands and actuator assemblies. They automatically compensate for thermal expansion and contraction cycles, avoiding fluid leakage and ensuring zero-emission sealing integrity without restricting smooth stem movement.
Integrated into precision spindle assemblies, bearing pre-loads, and rapid-change die modules, our curved washers absorb micro-vibrations, minimize axial end play, and ensure smooth, jitter-free rotation of high-speed bearings.
Used within high-voltage switchgears, busbar connections, and bolted electrical joints. Because high currents generate substantial thermal cycles, the curved disc spring maintains constant, uniform contact pressure, preventing bolt creep and avoiding costly localized overheating or electrical arcing failures.
Applied within automotive transmission assemblies, steering linkages, braking systems, and heavy construction equipment joints. They act as robust shock absorbers and tension elements that resist loosening caused by intense, continuous structural vibrations.
Jiangsu Sunzo Spring Elasticity Technology Co., Ltd. is a highly respected mixed-ownership enterprise proudly backed by equity participation from the China National Nuclear Corporation (CNNC) ecosystem. This corporate foundation instills a deeply rooted culture of quality control, absolute traceability, and rigorous technical documentation across every product batch we deliver.
Sunzo operates a dual-facility ecosystem optimized for speed and innovation. Our dedicated Product Research & Development Center is strategically located in Nanjing, Jiangsu Province, where veteran elasticity experts design, simulate, and validate complex spring architectures.
Mass production, precision stamping, and specialized thermal processing are carried out at our state-of-the-art, 60-acre manufacturing base in Sihong Economic Development Zone, Suqian, Jiangsu Province. This centralized infrastructure ensures rapid transition from concept to high-volume industrial supply.
Our production processes are fully certified under global quality architectures, including the automotive industry's stringent IATF 16949, alongside ISO 9001 (Quality Management), ISO 14001 (Environmental Management), and ISO 45001 (Occupational Health & Safety).
Sunzo houses an independent, fully equipped inspection laboratory featuring handheld X-ray fluorescence (XRF) spectrometers for precise material verification, advanced metallographic microscopes, comprehensive load-testing equipment ranging from 50N to 4,000KN, and electro-hydraulic servo fatigue testing rigs.
Furthermore, to combat diverse corrosive environments, we offer specialized surface treatments including Zinc Phosphating, Mechanical Galvanizing, PTFE anti-friction coatings, and high-tier Dacromet (Dacromet-coated curved springs) coatings that effortlessly endure extended salt spray testing.
Whether you require standard stock replacements or a complex custom-engineered elastic system, Jiangsu Sunzo provides end-to-end technical assistance. Our international engineering division communicates fluently across global technical standards (DIN, ASME, ISO, JIS), ensuring your specifications are accurately translated from initial CAD models to final physical components.
Partner with Jiangsu Sunzo to secure a reliable, vibration-resistant, and high-performance future for your mechanical assemblies. Contact our Nanjing R&D center or our Sihong manufacturing hub today for custom quotes, technical consultations, and free engineering samples.
