Quick Reference of Disc Spring Technical Specifications: Product Performance Data and Application Matching Analysis of DIN2093 Standard

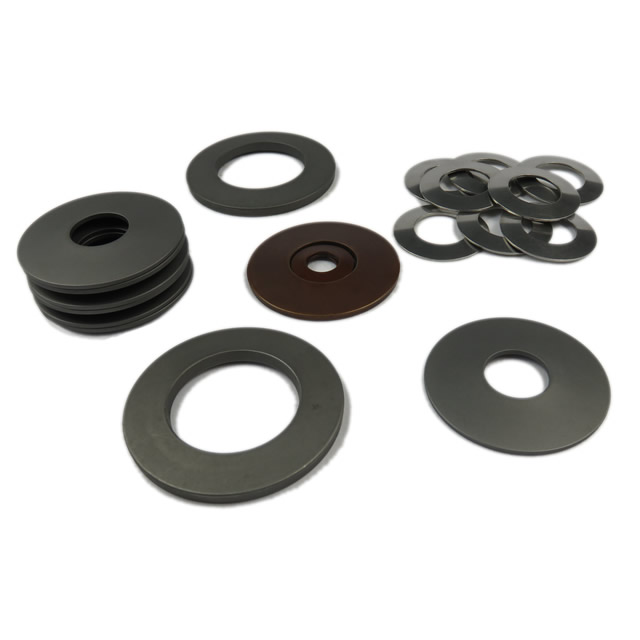

In industrial drives, heavy machinery, and precision equipment, the performance of disc springs directly impacts system stability. Jiangsu Sunzo manufactures disc springs strictly compliant with DIN2093 standards, covering the full spectrum from micro precision components to large heavy-duty elements, delivering reliable elastic solutions for diverse operational conditions.
Standard compliance: Strictly adheres to DIN2093 standard, compatible with international and domestic standards such as GB/T 1972 and ISO 9001.
Extensive size range: Outer diameter from 6mm to 600mm, thickness from 0.2mm to 37mm, meeting diverse installation space requirements.
Multiple material options: Available in 51CrV4, 60Si2MnA, 65Mn, stainless steel (SUS302/304/316),177PH, Inconel 718/750, and other materials.
Surface treatment options: Phosphating, Dacromet, Blue Finish, Polishing, Jumeite, Passivation, Teflon, etc., adaptable to various environmental requirements
Accuracy level: Capable of providing Class I and Class II precision with strict control over critical dimensions
Heavy Machinery: Mine Brake, Rolling Mill Buffer, Crane End Limit
Energy Equipment: Wind Power Locking Mechanism, Nuclear Power Plant Valve Actuator, High Voltage Switching Operation Mechanism
Transportation: Railway vehicle buffers, automobile clutches, transmission pre-tensioning
Precision Equipment: Machine Tool Tool Clamping, Medical Device Axial Positioning, Instrument Force Control
Product Specification Sheet
Product Code | external diameter D（mm） | bore size d（mm） | thickness t（mm） | Free height H₀ (mm) | h₀ (mm) | Compress by 25% | Compress by 50% | Compress 75% | Weight per 1000 tablets (kg) |
001 001 | 6.00 | 3.20 | 0.30 | 0.45 | 0.15 | 45N/0.04mm | 84N/0.08mm | 119N/0.11mm | 0.04 |
001 002 | 8.00 | 3.20 | 0.20 | 0.40 | 0.20 | 12N/0.05mm | 21N/0.10mm | 26N/0.15mm | 0.06 |
001 003 | 8.00 | 3.20 | 0.30 | 0.55 | 0.25 | 46N/0.06mm | 79N/0.13mm | 104N/0.19mm | 0.10 |
001 004 | 8.00 | 3.20 | 0.40 | 0.60 | 0.20 | 69N/0.05mm | 130N/0.10mm | 186N/0.15mm | 0.13 |
001 005 | 8.00 | 3.20 | 0.50 | 0.70 | 0.20 | 128N/0.05mm | 246N/0.10mm | 357N/0.15mm | 0.17 |
001 006C | 8.00 | 4.20 | 0.20 | 0.45 | 0.25 | 21N/0.06mm | 33N/0.13mm | 39N/0.19mm | 0.06 |
001 007B | 8.00 | 4.20 | 0.30 | 0.55 | 0.25 | 52N/0.06mm | 89N/0.13mm | 118N/0.19mm | 0.09 |
001 008A | 8.00 | 4.20 | 0.40 | 0.60 | 0.20 | 78N/0.05mm | 147N/0.10mm | 210N/0.15mm | 0.11 |
Note: The complete specification table includes over 400 standard specifications from 001 001 to 001 413, covering the full range of DIN2093 standard products. For detailed data, please contact our technical team for the full electronic manual.
When selecting appropriate disc spring specifications, the following factors should be comprehensively considered:
Installation space: Determine the radial installation size based on the outer and inner diameters
Load requirements: Determine the required working load based on the force values at 25%,50%, and 75% compression.
Work行程: Determine the available deformation range based on the free height and allowable compression
Environmental conditions: Material selection and surface treatment based on temperature and corrosive medium
COMBINATION METHOD: CALCULATION OF TOTAL LOAD AND DEFORMATION UNDER THE COMBINATION OF CONFRONTAL, OVERLAP AND COMPOSITE
Jiangsu Sunzo's technical team can provide you with:
Free selection calculation service
Customized combination scheme design
Sample Testing and Performance Verification
On-site technical guidance
