Technical Guidance Manual for Selection of Disc Springs in Automobile Transmission

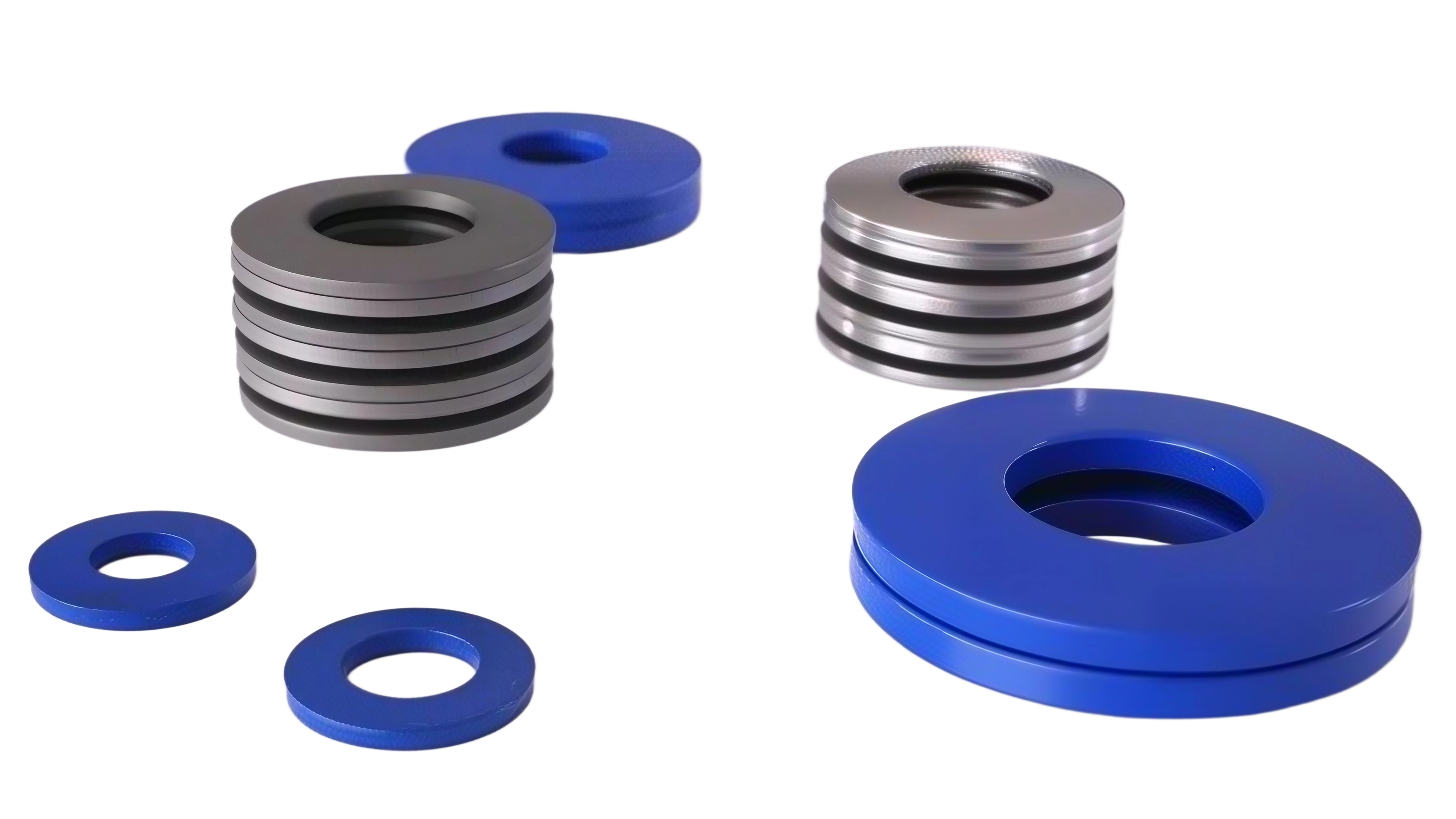

This manual provides comprehensive technical guidance for disc spring (hereinafter referred to as disc spring) selection in automotive transmission system design and engineering applications. Its core content focuses on two market-proven high-performance disc spring product series: the 001 057 and 001 068 series. Both series adopt standard nominal outer diameters of D=20mm, representing standardized solutions specifically developed to meet the stringent requirements of modern automotive transmission systems.
Within modern automotive transmissions, the synchronizer mechanism and gear shift actuator serve as critical components ensuring smooth and precise gear shifts. These systems impose stringent technical requirements on key elastic elements—the disc springs—particularly regarding mechanical performance accuracy (e.g., load-displacement characteristics) and long-term cyclic fatigue durability. To meet these high standards, the disc spring products recommended in this manual are designed and manufactured in strict compliance with German industrial standard DIN 2093 specifications. The 20mm outer diameter disc spring series has been successfully implemented across transmission systems ranging from passenger vehicles to commercial vehicles, thanks to its exceptional performance reliability, superior dimensional consistency, and broad system compatibility. These springs have become essential foundational components ensuring optimal shift quality and transmission reliability.
Detailed technical specifications of representative products (using model 001 062 as an example)
To clearly illustrate the technical specifications of this product series, we present a detailed breakdown of key dimensions and mechanical performance data for representative models 001 and 062:
Nominal outer diameter D: 20.00 mm
Inner diameter size d: 8.20 mm
Single-layer material thickness t: 1.00 mm
Free state (unloaded) height H₀: 1.60 mm
Key mechanical performance points:
When the compression deformation reaches 25% of the free height, the corresponding standard load value is 556 N.
When the compression deformation reaches 50% of the free height, the corresponding standard load value increases to 1020 N.
The standout advantage of this series of disc springs lies in their highly adaptable design flexibility. By offering diverse thickness (t) specifications and precisely adjusting the ratio of free height (H₀) to thickness (t) (h₀/t), they enable elastic characteristic curves ranging from near-linear to pronounced nonlinear behavior. This design flexibility allows engineers to accurately match the varying requirements of different vehicle transmissions regarding shift force feedback, operational travel response, and mechanism reset characteristics, thereby optimizing the driver's shifting experience.
In terms of materials and manufacturing processes, this series of disc springs consistently adheres to high standards. Premium alloy spring steels such as 50CrVA (chromium-vanadium alloy spring steel) or 60Si2MnA (silicon-manganese alloy spring steel) are selected as raw materials to ensure the base material possesses high elastic limit, excellent fatigue strength, and superior toughness. All products undergo rigorous surface phosphating treatment, which not only forms a dense phosphate conversion film on the disc spring surface but also enhances corrosion resistance.
It significantly improves wear resistance and corrosion resistance, ensuring long-term stable operation in the complex lubricating oil environment inside the gearbox.
To ensure disc springs deliver optimal performance in transmission systems and maintain long-term reliability, the following technical considerations should be prioritized during actual assembly and application processes:
Force consistency and stability: It is essential to strictly ensure high stability and consistency in load force values between products of the same batch and different batches. This is the fundamental prerequisite for achieving clear, uniform, and predictable gear shifting sensations in vehicles, as well as ensuring consistent quality in mass production.
Fatigue Life Matching Design: The fatigue life design of disc springs must be coordinated with the overall design life and maintenance cycle of the transmission. Through optimized design and manufacturing processes, it is ensured that the elastic performance of disc springs does not experience significant degradation throughout the entire service life of the transmission, thereby guaranteeing the long-term reliability and safety of the transmission system.
Customized Surface Treatment Solutions: Recognizing that different transmission manufacturers operate under varying internal conditions (e.g., lubricant compositions, temperature ranges), we provide tailored surface treatment options (including specialized coatings) based on client-specific requirements. This approach enhances disc spring performance by improving environmental adaptability, chemical corrosion resistance, and overall durability under specific transmission lubrication conditions.
If you require disc spring test samples suitable for automotive industry installation verification, or wish to explore technical details and obtain customized solutions for specific applications (such as high-performance or new energy vehicle transmissions), we cordially invite you to contact our professional Business and Technical Service Team. Our engineers will provide comprehensive technical support and consulting services.
