Technical Support from Jiangsu Sunzo Wavy Springs: End-to-end engineering solutions to facilitate component selection and compatibility

Technical Support from Jiangsu Sunzo Wavy Springs: End-to-end engineering solutions to facilitate component selection and compatibility

In industrial component selection scenarios, matching corrugated springs to diverse application requirements necessitates comprehensive evaluation of multi-dimensional parameters—including load requirements, environmental conditions, and spatial constraints—a process that typically relies on specialized engineering technical support. As an enterprise dedicated to the research, development, and production of elastic components, Jiangsu SUNZO has accumulated extensive expertise in the field of corrugated springs over the years. The company has established a full-cycle technical support system encompassing design planning, customized development, performance verification, and practical deployment, enabling it to deliver tailored engineering solutions for customers across various industries.

I. Application Scenarios and Key Selection Considerations for Wave Springs

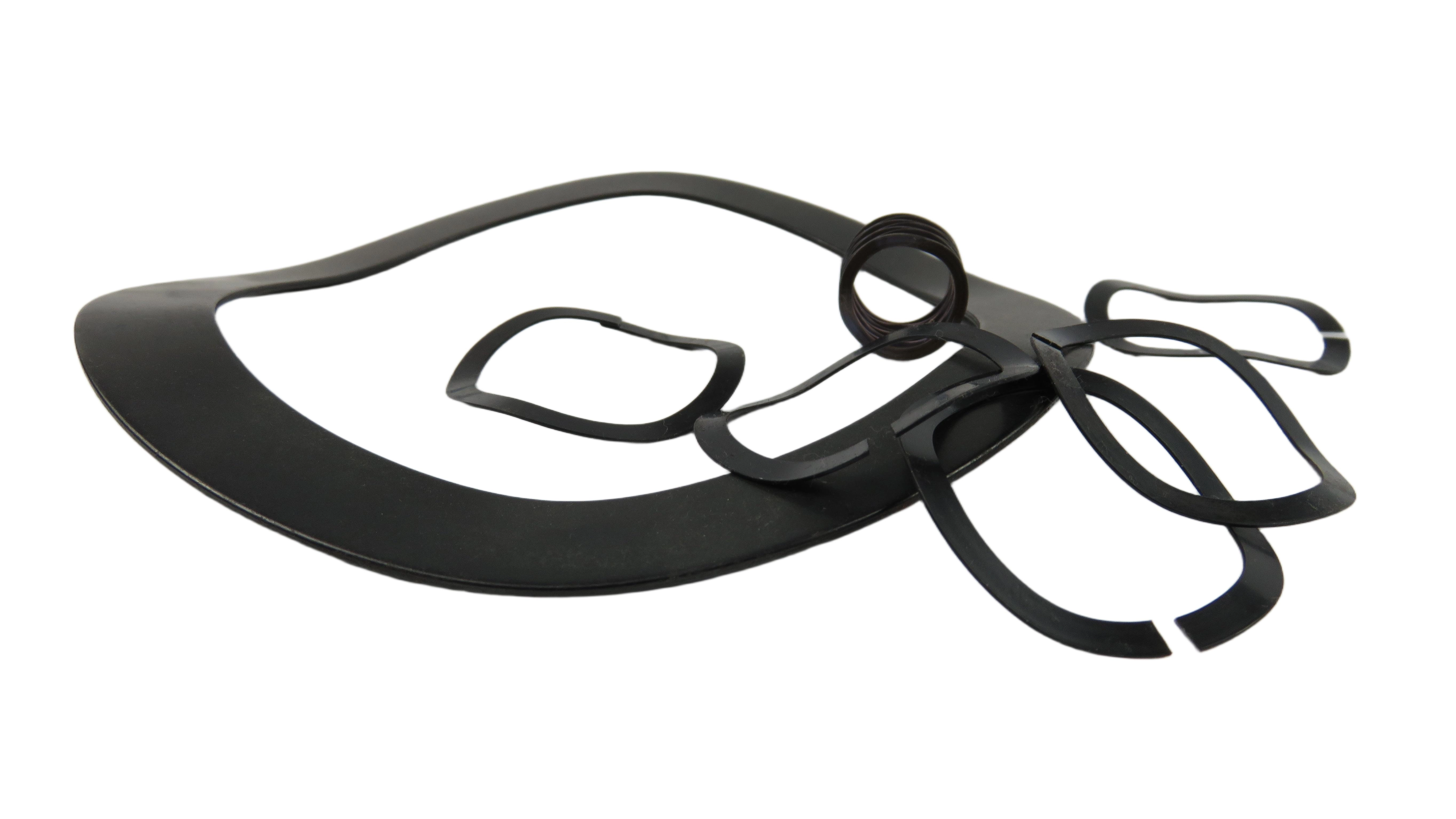

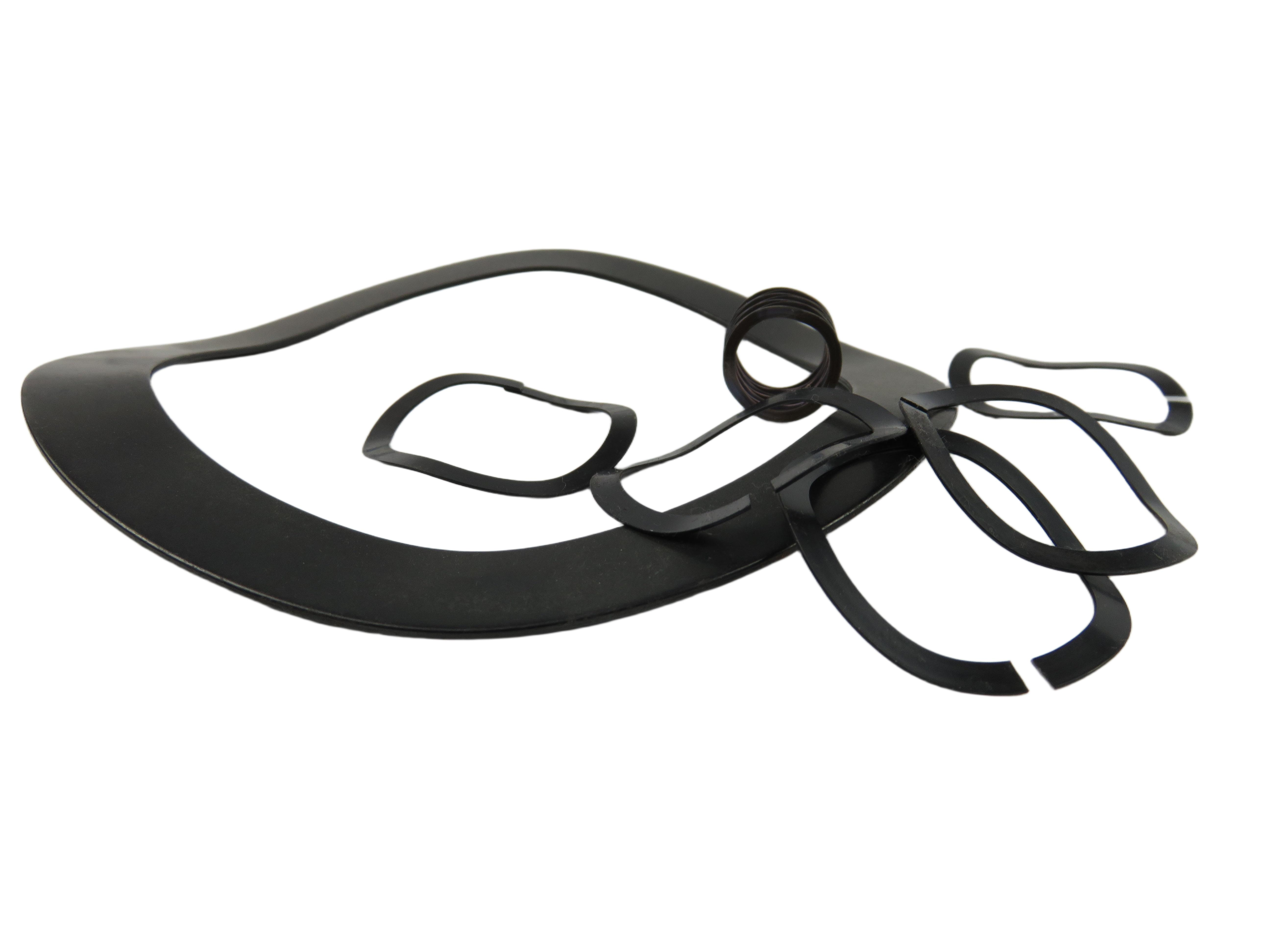

A corrugated spring is an elastic component fabricated by shaping a metal ring into regular wave profiles, making it suitable for industrial applications requiring a load range of 5 N to 500 N, an axial deformation limit of ≤0.05 mm, and the maintenance of a stable preload. Currently, such components are widely employed in diverse fields—including aerospace actuation systems, precision medical devices, hydraulic sealing assemblies, automotive transmission systems, and instrumentation adjustment mechanisms—where different application scenarios impose varying requirements on the material properties, structural parameters, and performance specifications of corrugated springs.

During the component selection process, in addition to basic load and dimensional requirements, it is also necessary to evaluate factors such as the operating temperature range, dynamic load frequency, degree of exposure to corrosive environments, and installation space constraints in actual application scenarios. Insufficient parameter compatibility may lead to reduced component service life, diminished operational stability, or even disruption of the overall equipment's normal operation. Leveraging extensive industry service experience, the technical team at Jiangsu Sunzo can assist customers in identifying core requirements across diverse application scenarios, thereby mitigating common parameter mismatch issues encountered during component selection.

II. End-to-End Technical Support Service System

Jiangsu Sunzo's technical support for waveform springs spans four core phases, providing customers with end-to-end services—from requirements assessment to practical implementation:

1. Application Scenario Analysis and Evaluation

During the initial project engagement phase, engineers conduct comprehensive investigations into the customer's actual application scenarios to identify key operating parameters—including the temperature operating range from-200 °C to 650 °C, dynamic load frequency, exposure to corrosive media, and installation space dimensions—thereby recommending appropriate material solutions tailored to these parameters. The company's current material library comprises multiple grades, such as 65Mn, 60Si2MnA, SUS304, and Inconel718. Among these, 65Mn is suitable for applications requiring high fatigue life; 60Si2MnA offers superior ductility, making it ideal for vibration mitigation applications; SUS304 is well-suited for use in humid and corrosive environments; and Inconel718 maintains stable performance even at high temperatures up to 650 °C.

2. Customized Solution Design and Development

Once the basic parameters are determined, the technical team utilizes finite element analysis (FEA) simulations and 3D modeling technologies to optimize key parameters of the wave-shaped spring—including the number of wave peaks, thickness distribution, and structural dimensions—ensuring that the product's stiffness index meets the target range of 0.5–20 N/mm and that its load-deformation characteristics satisfy practical application requirements. For customers requiring rapid validation, the company offers rapid prototyping services via CNC forming processes, with dimensional tolerances for prototypes controllable within ±0.02 mm, thereby helping customers shorten their solution validation cycles.

3. Multi-dimensional Performance Verification Testing

Each customized waveform spring solution undergoes multiple rounds of performance testing, including load-deflection curve analysis (with testing accuracy up to ±3%), fatigue life testing (completing 10⁶ cycles under 70% of the rated load), and environmental exposure testing (e.g., salt spray testing, hot-and-cold cycling tests), ensuring that the delivered products meet the performance requirements of actual application scenarios. All test data generated during this process is compiled into a comprehensive report delivered to the customer, facilitating project archiving and subsequent performance traceability.

4. On-premises application integration support

Upon product delivery, the technical team will provide a detailed installation manual, conduct compatibility assessments for the supporting components, and—based on customer requirements—offer post-installation performance monitoring services to promptly address any technical issues encountered during operation. For customers in the East China region, the company also provides on-site technical support services to help them quickly resolve practical challenges encountered during installation and commissioning.

III. Localized Service Advantages of Jiangsu Sunzo

As an elastic component manufacturer headquartered in Jiangsu Province, Jiangsu Sunzo operates within the Yangtze River Delta region, serving multiple provinces and municipalities across China, and thus possesses a unique advantage in providing localized services. The company owns an independent R&D and production base equipped with multiple advanced processing and testing facilities, enabling it to promptly respond to customers' customized requirements. For regular customized orders, the delivery cycle can be kept within a reasonable timeframe, thereby helping customers shorten their project development cycles.

For customers across diverse industries, our technical team provides tailored solution recommendations based on the specific application requirements of each sector. To date, we have delivered wave-shaped spring solutions to clients in multiple fields—including aerospace, medical devices, hydraulic transmission, and automotive manufacturing—thereby accumulating extensive industry-specific service expertise. Our company consistently prioritizes technological innovation, continuously optimizing product manufacturing processes and service workflows, and is committed to delivering stable and reliable elastic component products alongside professional technical support services to our customers.

IV. Industry Application Case Studies

In a specific aerospace actuation system project, the client required a waveform spring capable of maintaining stable preload under alternating high-and low-temperature conditions. After multiple rounds of solution optimization, Jiangsu Sunzo's technical team selected alloy materials suitable for high-temperature environments and adjusted structural parameters. The final product successfully passed rigorous environmental testing and performance validation, thereby meeting the client's operational requirements.

In a precision medical device project, the client had stringent requirements regarding the dimensional accuracy and load stability of wave springs. By optimizing manufacturing processes and quality inspection procedures, the company ensured consistent parameter performance across batch products, which earned the client's approval upon product delivery. Whether dealing with miniature wave springs for small-scale equipment or large-sized wave springs for industrial machinery, Jiangsu Sunzo's technical team is capable of providing tailored solutions that meet specific client requirements.

In the future, Jiangsu Sunzo will continue to deepen its expertise in the field of wavy spring technology, further refine its technical support service system, and provide high-quality products and services to customers across a wider range of industries, thereby fostering innovative development in the industrial manufacturing sector.
