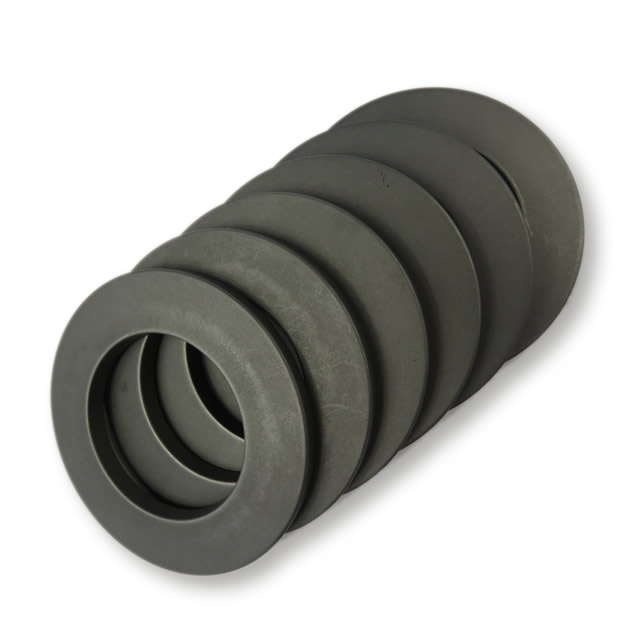

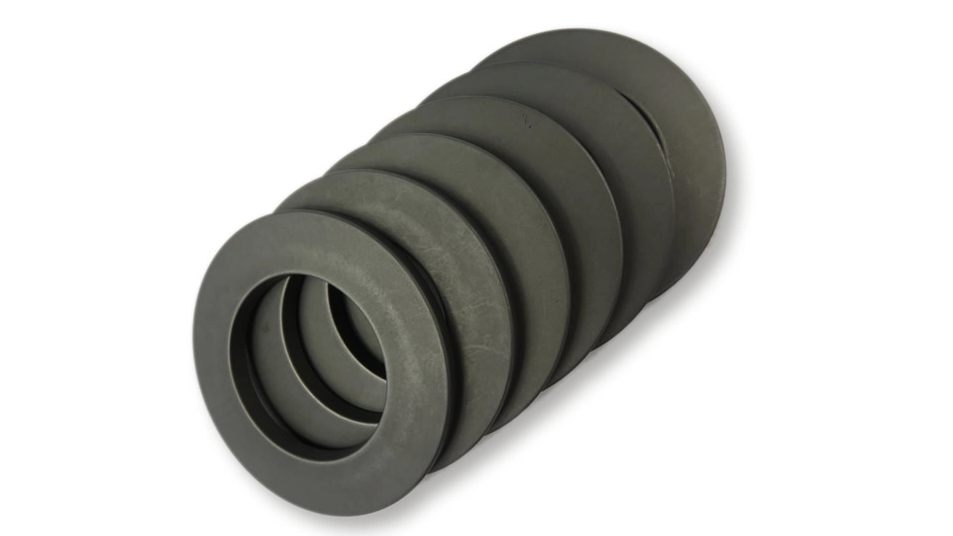

Product Focus: 001 046 001 056 Series (D=18mm)
The clutch system imposes strict requirements on the dynamic response and fatigue life of springs. The DIN2093 standard 18mm series disc springs, with their stable load characteristics and excellent impact resistance, have become a reliable choice for clutch clamping mechanisms.
Typical product parameters (001 049)
Outer diameter D: 18.00 mm
Inner diameter d: 6.20 mm
thickness t: 0.70 mm
Free height H₀: 1.40 mm
Compression load at 25% capacity: 354 N
50% load compression: 588 N
During the clutch engagement and disengagement processes, the disc spring is subjected to high-frequency cyclic loads. This product series is manufactured from premium spring steel and undergoes optimized heat treatment, ensuring a cyclic life of over hundreds of thousands of cycles.
Application value of clutch:
Provide stable clamping force
Fast dynamic response speed
excellent impact resistance
For technical specifications of clutch-specific disc springs, please contact our sales team for details.
