In bolted connection design, the combination of "flat washer + standard elastic washer" was once the default configuration for numerous pieces of equipment, appearing on assembly drawings spanning a wide range of applications—from machine tools and motors to construction machinery and bridge structures. However, under operating conditions characterized by simultaneous exposure to vibration, impact, and temperature variations, the anti-loosening performance of this traditional combination is often inadequate; instances of abnormal noise, oil leakage, or even structural damage resulting from connection loosening are not uncommon. This has led to significant downtime costs for many equipment maintenance teams, while the associated costs and safety risks stemming from frequent repairs are becoming increasingly prominent.

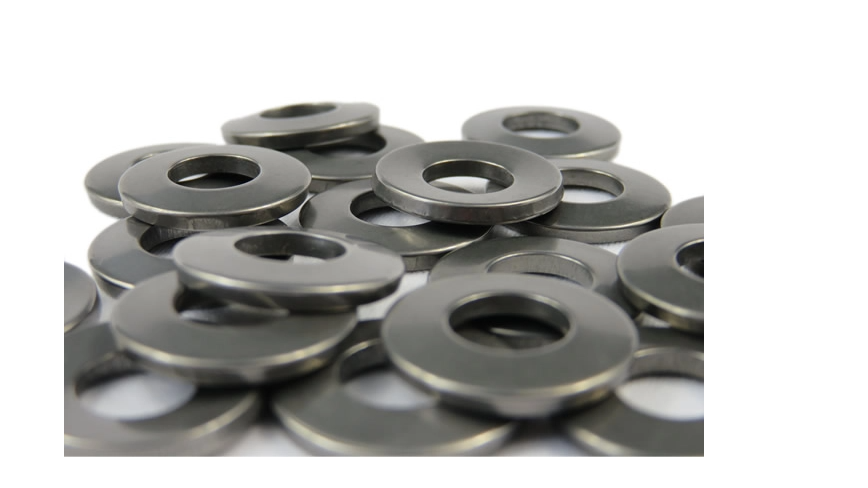

The DIN 6796 disc spring washer, as an active anti-loosening component, is emerging as an advanced alternative for bolted connections under medium to high loads and is gaining increasing recognition and adoption among design engineers. Jiangsu Sunzo Spring Elastic Technology Co., Ltd. (brand: SUNZO) manufactures disc spring washers in compliance with the DIN 6796 standard, providing customers in industries such as construction machinery, wind power, and automotive with more reliable connection solutions. The company also offers comprehensive support—including component selection advice, sample validation, and quality data—to assist customers in successfully implementing solution upgrades and effectively ensuring anti-loosening reliability in mass-produced products.
The primary function of a flat washer is to distribute stress and protect the surfaces of the connected components; it does not provide any inherent anti-loosening capability. Standard elastic washers increase frictional resistance through the local tension generated by their cut edges, but they are prone to loosening or even breaking under severe vibration, resulting in an unstable anti-loosening performance. This explains why many devices exhibit signs of loosening at their connection points after prolonged operation.
The more critical issue lies in the fact that traditional fastening systems represent a "passive" locking mechanism: once the clamping force diminishes due to vibration, wear, or creep, the system cannot recover on its own. For bolted connections subjected to medium or high loads, this passive locking approach proves ineffective and often necessitates frequent inspections to compensate; however, such inspections are constrained by factors such as workstations, available space, and inspection frequency, making it difficult to guarantee reliability and leaving persistent safety risks. When these issues accumulate to a certain extent, they can suddenly manifest in a concentrated manner.
From the perspective of failure mechanisms, bolt loosening typically does not occur instantaneously; rather, it is the result of a gradual decay of the preload and the progressive accumulation of thread micro-wear. Conventional elastic washers offer virtually no proactive intervention during this process, leaving them powerless to prevent the clamping force from continuously decreasing. Therefore, to fundamentally enhance the long-term reliability of connections, a component capable of actively compensating for the decline in preload is required – this is precisely the direct reason why disc spring washers have gained attention among engineers.
At the implementation level, the replacement plan can be rolled out in phases: begin by selecting key connections with significant vibration or high maintenance costs for pilot implementation, recording the frequency of loosening and maintenance data before and after the replacement, and then expand the scope based on the comparison results. This phased approach not only helps mitigate risks but also provides quantifiable evidence of the benefits derived from the replacement, facilitating the reporting of these outcomes to management and the team.
The DIN 6796 disc spring washer features a conical disc design that undergoes axial elastic deformation upon bolt tightening, converting the tightening torque into elastic potential energy, which is then continuously released during service. This applies a stable axial preload to the connection pair, helping the joint maintain its designed preload state over the long term and thereby reducing the likelihood of loosening at the source.
When vibration, wear, or creep causes the clamping force to decrease, the washer compensates for the loss of preload through elastic rebound – a form of "active" anti-loosening. This mechanism more accurately reflects the actual failure scenario of bolt loosening and enables the maintenance of stable preload throughout the entire service life of the connection, thereby reducing failures and potential hazards caused by loosening at the source – which is the fundamental distinction between this approach and passive anti-loosening solutions.
It should be noted that the preload retention capability of disc springs is closely dependent on the spring's hardness, conical angle, and heat treatment state. High-quality DIN 6796 springs are typically manufactured with a hardness range of 420–510 HV; this range ensures sufficient elastic return stroke while minimizing the risk of brittle fracture. This manufacturing window is the result of extensive long-term engineering practice and represents a critical hard-parameter to consider when selecting such springs.
For designers, understanding the load characteristics of disc springs is equally important: the relationship between the spring's flattening force range, elastic travel, and the bolt clamping force determines its suitability for bolts of various specifications. Selection data can be obtained from standard specifications or supplier documentation; when necessary, these should be verified through testing.
The difference in loosening resistance can be quantified using standard testing methods. According to the DIN 25201-4 transverse vibration standard test, a DIN 6796 washer with M10 specification maintains a clamping force retention rate of 75.67% – approximately 1.59 times that of the traditional "flat washer + elastic washer" combination. This significant difference provides an objective basis for component selection.
For equipment subjected to long-term alternating loads, this advantage translates directly into a lower probability of loosening, longer maintenance intervals, and reduced downtime costs. In industries with stringent requirements for overall equipment reliability, implementing an active anti-loosening solution results in fewer after-sales issues and higher equipment availability rates, allowing the economic benefits to be fully realized over the long term.
It is important to note that the test data serves only as a reference benchmark; the actual performance in real-world applications also depends on factors such as bolt grade, tightening methodology, and load characteristics. In engineering practice, it is advisable to conduct validation based on the specific operating conditions of the project, or to request the supplier to provide test data tailored to the actual operating conditions, thereby conducting a data-driven evaluation of the solution and avoiding making judgments solely based on promotional claims or experience.
From an industry trend perspective, the adoption rate of active anti-loosening solutions is steadily increasing across sectors involving vibration-intensive operations—such as construction machinery and wind power—while relevant testing standards are continuously being refined. This provides a more robust technical foundation and industry benchmark for implementing such solutions; the earlier companies adopt these measures, the more they can accumulate mature application experience.
Using a single DIN 6796 disc spring washer to replace two components (flat washer + elastic washer) reduces the variety of parts and assembly steps, as well as the likelihood of incorrect or missing component installation. This simplifies inventory management, keeps assembly line workstations cleaner, makes procurement lists clearer, and consequently lowers supply chain management costs.
Although the unit cost is higher than that of conventional elastic washers, the overall economic viability is often superior when accounting for improved assembly efficiency, reduced maintenance frequency, and lower downtime losses. For OEMs engaged in large-scale assembly operations, this cost difference is clearly reflected in both final assembly costs and after-sales costs; from a long-term perspective, it represents a cost-effective investment, and an increasing number of companies have consequently adopted this solution.
During the transition process, assembly procedures must be adjusted in synchronization: confirm the gasket installation direction, verify the tightening torque, and clearly specify the specifications and inspection requirements in the process documentation. Jiangsu Sunzo can provide installation and usage instructions as well as process support to assist customers in updating their process documentation and conducting personnel training, ensuring a smooth implementation of the new solution and preventing any adverse impact on the anti-loosening performance due to inadequate process implementation.
In addition to its anti-loosening performance, the DIN 6796 gasket also offers the structural advantage of requiring minimal axial space, making it particularly suitable for space-constrained connection designs. This enhances its compatibility in the context of the growing trend toward lightweight and compact equipment design, making it a worthwhile candidate for prioritized evaluation during the design phase.
Since its establishment in 2006, Jiangsu Sunzo Spring Elastic Technology Co., Ltd. has specialized in the manufacturing of elastic components such as disc springs and wave springs. The company holds certifications under international standards including ISO 9001 and IATF 16949, and boasts a robust quality management system. Its products are widely used in various industries, including nuclear power, aviation, hydrogen energy, and wind power.
The company possesses comprehensive production capabilities covering the entire manufacturing process – including annealing, forming, heat treatment, high-pressure forming, and automated sorting – and can supply disc spring washers made of various materials and with different surface treatments in compliance with the DIN 6796 standard. We also support custom non-standard orders and bulk deliveries, providing customers with end-to-end support ranging from product selection to delivery, ensuring the reliable implementation of our solutions.
In terms of materials, Jiangsu Sunzo offers a range of grades including 1074,65Mn, 60Si2MnA, 51CrV4, SUS302/304/316,17-7PH, Inconel 718, and Inconel X-750; surface treatment options include phosphating, Dacromet plating, blue treatment, polishing, Jiemete treatment, passivation, and Teflon coating – all of which can be flexibly combined based on operating temperature, environment, and corrosion resistance requirements, balancing performance and cost.
Jiangsu Sunzo's engineering team can assist customers in reviewing and implementing replacement solutions – including specification confirmation, sample validation, and batch delivery – helping customers execute solution transitions thoroughly and meticulously, thereby preventing any adverse impact on actual performance resulting from incorrect component selection or process-related details.
To determine whether to replace traditional assemblies with DIN 6796 gaskets, a comparison can be made across three dimensions: loose failure frequency, maintenance intervals, and downtime costs. For critical connections exhibiting significant vibration or difficult maintenance access, the benefits of replacement are typically realized quickly; the more comprehensive the data comparison, the more confident the decision will be.
It is recommended to conduct initial validation during the prototype or small-batch phase, recording the clamping force maintenance status and maintenance data, before gradually expanding the application scope. Use the collected data to drive the upgrade of the solution, thereby avoiding the risks associated with switching based solely on intuition, and ensuring that the upgrade process is smooth, controllable, and yields quantifiable results.
For connections that already utilize disc spring washers, it is recommended to simultaneously implement a torque sampling and condition recording system to track the variation trend of preload and validate the effectiveness of the design approach using operational data. This will accumulate first-hand experience for subsequent design optimization and component selection, enabling the anti-loosening management practice to gradually become data-driven and more refined.
The maintenance team should also promptly update its maintenance procedures by incorporating gasket inspection items into the point inspection checklist and clearly defining replacement criteria and intervals, thereby ensuring that the value of these measures is continuously realized throughout the entire equipment lifecycle and establishing a sustainable long-term mechanism for loosening prevention management.
Overall, the DIN 6796 disc spring washer, featuring an active preload maintenance mechanism, offers advantages in terms of loosening prevention reliability, assembly efficiency, and long-term cost-effectiveness. When combined with the professional support provided by Jiangsu Sunzo, it represents a reliable choice for upgrading connection solutions in equipment operating under vibration conditions, such as construction machinery.
